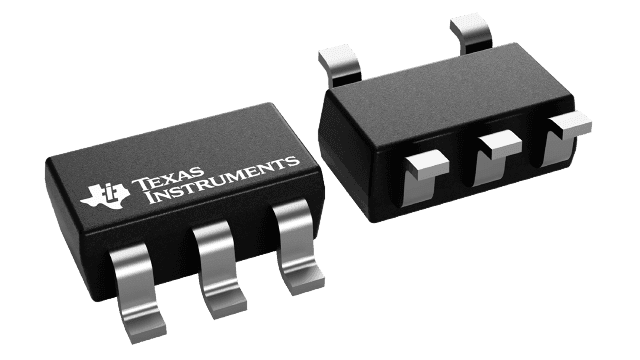

Representative TI SOT-23-5 package render for TLV9061IDBVR and LMV331IDBVR

Representative package visualProduct reference

Exact MPN17 sourced attributes1 manufacturer document

Texas Instruments · exact orderable part

LMV331IDBVR

TI single-channel low-voltage comparator with open-collector output in the active DBVR reel order code.

Number of Channels: 1
Minimum Supply Voltage: 2.7 V
Maximum Supply Voltage: 5.5 V
Propagation Delay: 600 ns
Package / Case: SOT-23-5 (DBV)
Propagation Delay Condition: Maximum value from the manufacturer electrical table

Original manufacturerCommercial terms confirmed per lot

ManufacturerTexas Instruments

Package / caseSOT-23-5 (DBV), 5-pin

Mounting typesurface mount

Lifecycleactive

Packing3,000 units/large tape-and-reel

Temperature grade-40 to 125 °C

Technical parameters

Technical specifications

17 normalized values · 1 manufacturer source

Report a data issue

LMV331IDBVR technical parameters
Parameter	Value
Number of Channels	1 [1]
Minimum Supply Voltage	2.7 V [1]
Maximum Supply Voltage	5.5 V [1]
Propagation Delay	600 ns [1]
Package / Case	SOT-23-5 (DBV) [1]
Propagation Delay Condition	Maximum value from the manufacturer electrical table [1]
Maximum Input Offset Voltage	7 mV [1]
Maximum Quiescent Current	150 µA [1]
Output Type	Open-collector; external pull-up required [1]
Rail-to-Rail Input	No [1]
Rail-to-Rail Output	No [1]
Pin Count	5 [1]
Top Marking	R1IF or R1IK [1]
Operating Temperature	-40 to 125 °C [1]
Manufacturer Packing Quantity	3000 [1]
RoHS Compliant	Yes [1]
Moisture Sensitivity Level	MSL1, 260 °C, unlimited floor life [1]

Specification references[1]TI LMV331 Low-Voltage Comparator Datasheet, reviewed 2026-09-10; 44 pages ↗

Product overview

LMV331IDBVR at a glance

The reviewed record identifies LMV331IDBVR as an exact Texas Instruments voltage comparators order code in SOT-23-5 (DBV), 5-pin. Key selection points include moisture sensitivity level of MSL1, 260 °C, unlimited floor life and rohs compliant of true.

Key features

Verified device capabilities

Moisture Sensitivity Level: MSL1, 260 °C, unlimited floor life under the cited manufacturer conditions.
RoHS Compliant: true under the cited manufacturer conditions.
Manufacturer Packing Quantity: 3000 under the cited manufacturer conditions.
Operating Temperature: -40 to 125 °C under the cited manufacturer conditions.
Top Marking: R1IF or R1IK under the cited manufacturer conditions.

Applications

Where the device is used

Electronic designs whose requirements match the documented electrical, package and environmental parameters.

Ordering information

Exact code and packing

LMV331IDBVR identifies the exact Texas Instruments order code in SOT-23-5 (DBV), 5-pin. Packing record: 3,000 units/large tape-and-reel. Current lot terms are confirmed in the quotation.

3,000 units/large tape-and-reel

DBVR is the active 3,000-piece reel order code. The distinct DBVT suffix is obsolete and is not interchangeable as an ordering identity.

Design notes

Use the rating in context

Use the cited operating conditions for LMV331IDBVR; do not convert an absolute maximum, headline rating or family-level value into an unconditional board-level guarantee.

The displayed visual is an official representative package render. It does not prove exact body marking, date code or shipment-lot identity.

LMV331IDBVR is active; the distinct DBVT packing suffix is obsolete and must not be substituted.

Quotation and fulfillment

What is confirmed before an order

Commercial facts belong to the quoted lot. The catalog does not invent live stock, price, date code or lead time.

Exact-part check

Manufacturer, full suffix, package, quantity and requested documentation are captured in the RFQ.

Lot-level quotation

Price, available quantity, date code, condition and lead time are written into the quotation when confirmed.

Inspection request

Label, marking, packing and traceability requirements can be specified before shipment.

Shipping and payment

Shipping method, Incoterm and available payment route are agreed in the commercial offer.

Technical and ordering FAQ

Questions buyers ask about LMV331IDBVR

Answers distinguish the IC itself from assembled modules and keep absolute limits separate from normal operating conditions.

What package does LMV331IDBVR use?

LMV331IDBVR is recorded in SOT-23-5 (DBV), 5-pin. Confirm the complete suffix and packing in the quotation.

What is the documented moisture sensitivity level?

The cited manufacturer record lists MSL1, 260 °C, unlimited floor life. Apply the source's test and operating conditions.

How should the rohs compliant be interpreted?

The normalized catalog value is true. The linked evidence controls its exact conditions and revision.

Does this page prove current LMV331IDBVR stock?

No. Technical evidence identifies the device; stock, date code, price, MOQ and lead time require a current verified offer or quotation.

Can LMV331IDBVR be replaced by a similar part without review?

No automatic drop-in claim is made. Compare electrical limits, package, pinout, functions and qualification before substitution.
