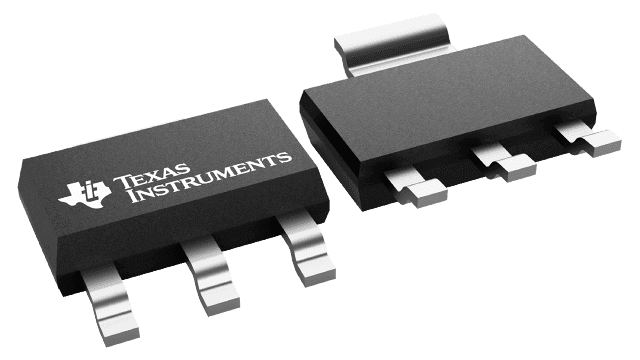

Representative SOT-223 (DCY), 4-pin including tab package reference for LM1117MPX-3.3/NOPB

Representative package visualProduct reference

Exact MPN12 sourced attributes1 manufacturer document

Texas Instruments · exact orderable part

LM1117MPX-3.3/NOPB

Texas Instruments 800 mA fixed 3.3 V LDO in the exact MPX reel order code.

Maximum Input Voltage: 15 V
Output Voltage: 3.3 V
Output Current: 0.8 A
Dropout Voltage: 1200 mV
Package / Case: SOT-223 (DCY)
Output Accuracy: 1 %

Original manufacturerCommercial terms confirmed per lot

ManufacturerTexas Instruments

Package / caseSOT-223 (DCY), 4-pin including tab

Mounting typesurface mount

Lifecycleactive

Packing2,000 units/large tape-and-reel

Temperature grade0 to 125 °C

Technical parameters

Technical specifications

12 normalized values · 1 manufacturer source

Report a data issue

LM1117MPX-3.3/NOPB technical parameters
Parameter	Value
Maximum Input Voltage	15 V [1]
Output Voltage	3.3 V [1]
Output Current	0.8 A [1]
Dropout Voltage	1200 mV [1]
Package / Case	SOT-223 (DCY) [1]
Output Accuracy	1 % [1]
Pin Count	4 [1]
Top Marking	N05A [1]
Operating Temperature	0 to 125 °C [1]
Manufacturer Packing Quantity	2000 [1]
RoHS Compliant	Yes [1]
Moisture Sensitivity Level	MSL1, 260 °C, unlimited floor life [1]

Specification references[1]TI LM1117 800-mA Low-Dropout Linear Regulator Datasheet, reviewed 2026-09-10; 46 pages ↗

Product overview

LM1117MPX-3.3/NOPB at a glance

The reviewed record identifies LM1117MPX-3.3/NOPB as an exact Texas Instruments ldo regulators order code in SOT-223 (DCY), 4-pin including tab. Key selection points include moisture sensitivity level of MSL1, 260 °C, unlimited floor life and rohs compliant of true.

Key features

Verified device capabilities

Moisture Sensitivity Level: MSL1, 260 °C, unlimited floor life under the cited manufacturer conditions.
RoHS Compliant: true under the cited manufacturer conditions.
Manufacturer Packing Quantity: 2000 under the cited manufacturer conditions.
Operating Temperature: 0 to 125 °C under the cited manufacturer conditions.
Top Marking: N05A under the cited manufacturer conditions.

Applications

Where the device is used

Electronic designs whose requirements match the documented electrical, package and environmental parameters.

Ordering information

Exact code and packing

LM1117MPX-3.3/NOPB identifies the exact Texas Instruments order code in SOT-223 (DCY), 4-pin including tab. Packing record: 2,000 units/large tape-and-reel. Current lot terms are confirmed in the quotation.

2,000 units/large tape-and-reel

Design notes

Use the rating in context

Use the cited operating conditions for LM1117MPX-3.3/NOPB; do not convert an absolute maximum, headline rating or family-level value into an unconditional board-level guarantee.

The displayed package image is representative and does not prove body marking, date code or shipment lot.

The 1.2 V dropout figure is typical at 800 mA and 25 °C; the maximum is 1.3 V over 0 to 125 °C. The ±1% output accuracy applies at 25 °C; use the full-temperature voltage limits for worst-case design.

Quotation and fulfillment

What is confirmed before an order

Commercial facts belong to the quoted lot. The catalog does not invent live stock, price, date code or lead time.

Exact-part check

Manufacturer, full suffix, package, quantity and requested documentation are captured in the RFQ.

Lot-level quotation

Price, available quantity, date code, condition and lead time are written into the quotation when confirmed.

Inspection request

Label, marking, packing and traceability requirements can be specified before shipment.

Shipping and payment

Shipping method, Incoterm and available payment route are agreed in the commercial offer.

Technical and ordering FAQ

Questions buyers ask about LM1117MPX-3.3/NOPB

Answers distinguish the IC itself from assembled modules and keep absolute limits separate from normal operating conditions.

What package does LM1117MPX-3.3/NOPB use?

LM1117MPX-3.3/NOPB is recorded in SOT-223 (DCY), 4-pin including tab. Confirm the complete suffix and packing in the quotation.

What is the documented moisture sensitivity level?

The cited manufacturer record lists MSL1, 260 °C, unlimited floor life. Apply the source's test and operating conditions.

How should the rohs compliant be interpreted?

The normalized catalog value is true. The linked evidence controls its exact conditions and revision.

Does this page prove current LM1117MPX-3.3/NOPB stock?

No. Technical evidence identifies the device; stock, date code, price, MOQ and lead time require a current verified offer or quotation.

Can LM1117MPX-3.3/NOPB be replaced by a similar part without review?

No automatic drop-in claim is made. Compare electrical limits, package, pinout, functions and qualification before substitution.

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerTexas InstrumentsView brand page →CategoryLDO RegulatorsView category page →Part familyLM1117MPX-3.3/NOPBCompare exact variants →
