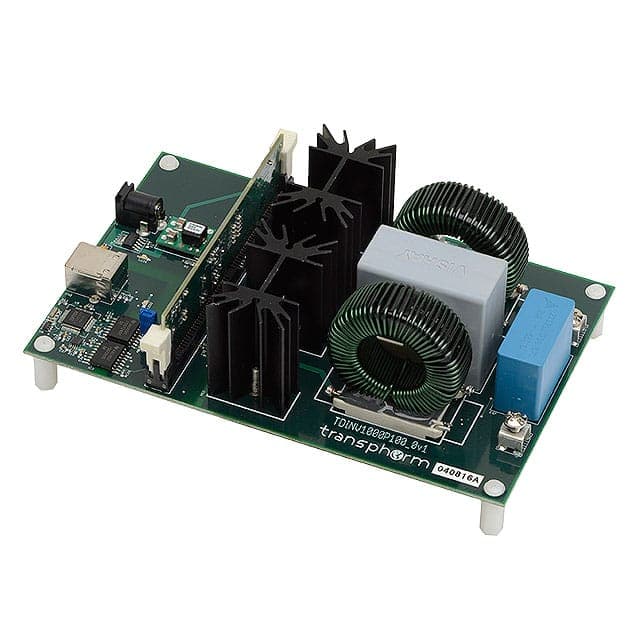

TDINV1000P100-KIT representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN13 sourced attributes2 source documents

Transphorm · exact orderable part

TDINV1000P100-KIT

1KW INVERTER EVALUATION KIT

Base Product Number: TDINV1000
Board Type: Fully Populated
Current - Output: 10A
Frequency - Switching: 100kHz
Main Purpose: DC/AC Converter
Power - Output: 1 kW

Original manufacturerCommercial terms confirmed per lot

ManufacturerTransphorm

PackingBulk

Technical parameters

Technical specifications

13 normalized values · 2 validated sources

Report a data issue

TDINV1000P100-KIT technical parameters
Parameter	Value
Base Product Number	TDINV1000 [2]
Board Type	Fully Populated [2]
Current - Output	10A [2]
Frequency - Switching	100kHz [2]
Main Purpose	DC/AC Converter [2]
Mfr	Transphorm [2]
Power - Output	1 kW [2]
Outputs and Type	1, Isolated [2]
Product Status	Obsolete [2]
Regulator Topology	Inverting [2]
RoHS (DigiKey record)	Not applicable [2]
Supplied Contents	Board(s), Power Supply [2]
Utilized IC / Part	TPH3206PSB [2]

Specification references[1]Transphorm TDINV1000P100-KIT 1kW Inverter Evaluation Board User Guide, evk006.2 ↗[2]Transphorm TDINV1000P100-KIT vendor product record ↗
