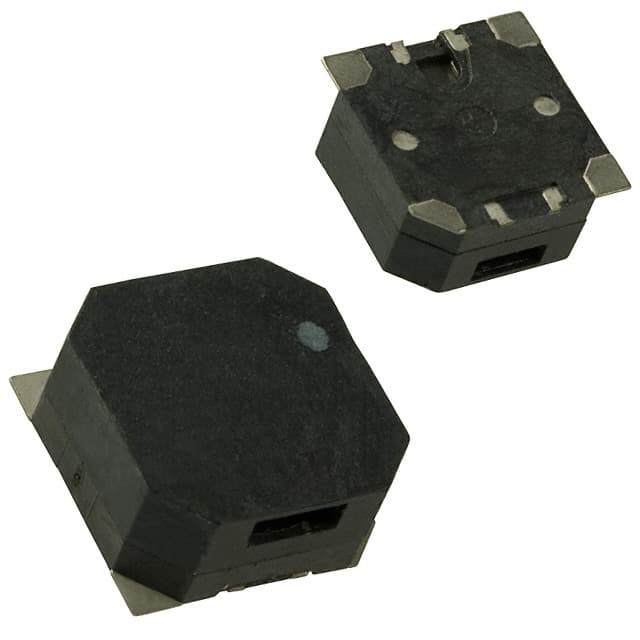

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

Soberton Inc. · exact orderable part

ST-04BT

Name: ST-04BT
Brand: Soberton Inc.

BUZZER MAGNETIC 3.6V 8.5X8.5 SMD

Original manufacturerCommercial terms confirmed per lot

ManufacturerSoberton Inc.

Mounting typeunknown

PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

18 normalized values · 1 validated source

ST-04BT technical parameters
Parameter	Value
Current - Supply	100mA [1]
Driver Circuitry	Transducer, Externally Driven [1]
Frequency	3.2kHz [1]
Height - Seated (Max)	0.169" (4.30mm) [1]
Input Type	Zero-Peak Signal [1]
Mfr	Soberton Inc. [1]
Mounting Type	Surface Mount [1]
Operating Mode	Single Tone [1]
Operating Temperature	-30°C ~ 70°C [1]
Port Location	Side [1]
Product Status	Active [1]
Series	ST [1]
Size / Dimension	0.335" L x 0.335" W (8.50mm x 8.50mm) [1]
Sound Pressure Level (SPL)	88dB @ 3.6V, 10cm [1]
Technology	Magnetic [1]
Termination	Solder Pads [1]
Voltage - Rated	3.6 V [1]
Voltage Range	2.5 ~ 4.5V [1]
