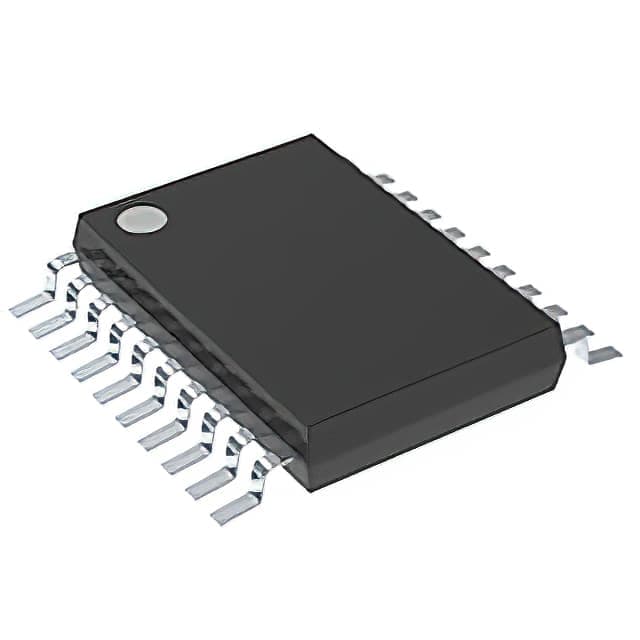

SN74HC244QPWRQ1 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN14 sourced attributes2 source documents

Texas Instruments · exact orderable part

SN74HC244QPWRQ1

IC BUFFER NON-INVERT 6V 20TSSOP

Logic Type: Buffer, Non-Inverting
Voltage - Supply: 2V ~ 6V
Output Type: 3-State
Number of Bits per Element: 4
Number of Elements: 2
Current - Output High, Low: 7.8mA, 7.8mA
Operating Temperature: -40°C~125°C(TA)
Package / Case: 20-TSSOP (0.173", 4.40mm Width)
Base Product Number: 74HC244

Original manufacturerCommercial terms confirmed per lot

ManufacturerTexas Instruments

Package / case20-TSSOP (0.173", 4.40mm Width)

Mounting typeSurface Mount

PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

14 normalized values · 2 validated sources

Report a data issue

SN74HC244QPWRQ1 technical parameters
Parameter	Value
Base Product Number	74HC244 [2]
Current - Output High, Low	7.8mA, 7.8mA [2]
Logic Type	Buffer, Non-Inverting [2]
Mfr	Texas Instruments [2]
Mounting Type	Surface Mount [2]
Number of Bits per Element	4 [2]
Number of Elements	2 [2]
Operating Temperature	-40°C~125°C(TA) [2]
Output Type	3-State [2]
RoHS (DigiKey record)	ROHS3 Compliant [2]
Product Status	Active [2]
Series	Automotive, AEC-Q100, 74HC [2]
Voltage - Supply	2V ~ 6V [2]
Package / Case	20-TSSOP (0.173", 4.40mm Width) [2]

Specification references[1]Purchased source PDF reference ↗[2]Texas Instruments SN74HC244QPWRQ1 vendor product record ↗
