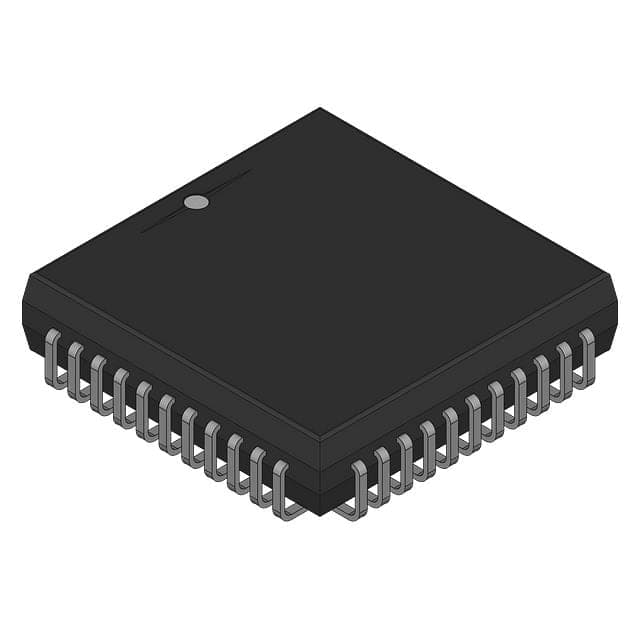

SN74ACT7807-20FN representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN18 sourced attributes1 source document

Luminary Micro · exact orderable part

SN74ACT7807-20FN

FIFO, 2KX9, 13NS, SYNCHRONOUS

Memory Size
18K (2K x 9)
Function
Synchronous
Data Rate
50MHz
Access Time
13ns
Voltage - Supply
4.5 V ~ 5.5 V
Bus Directional
Uni-Directional
FWFT Support
No
Expansion Type
Depth, Width
Current - Supply (Max)
400µA
Original manufacturerCommercial terms confirmed per lot
ManufacturerLuminary Micro
Package / case44-LCC (J-Lead)
Mounting typeSurface Mount
PackingTube

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue
ParameterValue
Access Time13ns [1]
Base Product Number74ACT7807 [1]
Bus DirectionalUni-Directional [1]
Current - Supply (Max)400µA [1]
Data Rate50MHz [1]
Expansion TypeDepth, Width [1]
FWFT SupportNo [1]
FunctionSynchronous [1]
Memory Size18K (2K x 9) [1]
MfrLuminary Micro [1]
Mounting TypeSurface Mount [1]
Operating Temperature0°C~70°C [1]
Product StatusObsolete [1]
Programmable Flags SupportYes [1]
Retransmit CapabilityNo [1]
Series74ACT [1]
Voltage - Supply4.5 V ~ 5.5 V [1]
Package / Case44-LCC (J-Lead) [1]
Specification references[1]Luminary Micro SN74ACT7807-20FN vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerLuminary MicroView brand page →CategoryFIFOs MemoryView category page →
