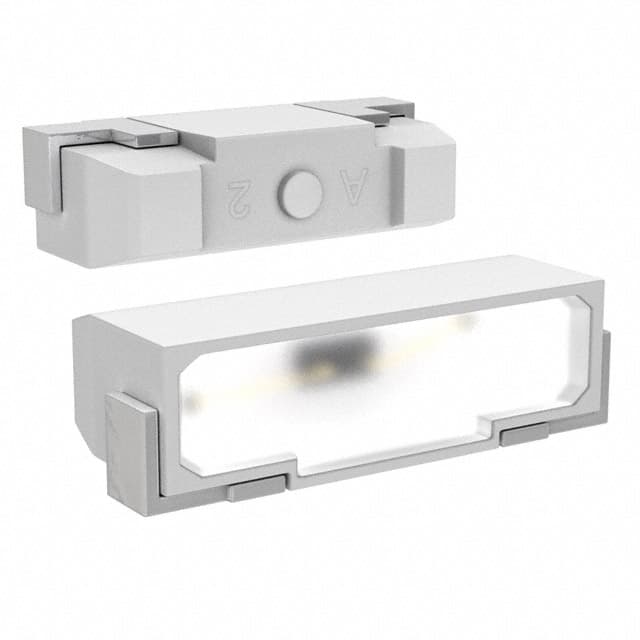

SMS1105RC vendor-delivered product or package visual
Representative package visualProduct referenceVendor-delivered DigiKey product/package image
Exact MPN17 sourced attributes1 source document

Bivar Inc. · exact orderable part

SMS1105RC

LED RED CLEAR 2PLCC SMD R/A

Base Product Number
SMS1105
Color
Red
Configuration
Standard
Current - Test
20mA
Height (Max)
0.80mm
Lens Color
Colorless
Original manufacturerCommercial terms confirmed per lot
ManufacturerBivar Inc.
Package / case2-SMD, J-Lead
Mounting typeunknown
PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberSMS1105 [1]
ColorRed [1]
ConfigurationStandard [1]
Current - Test20mA [1]
Height (Max)0.80mm [1]
Lens ColorColorless [1]
Lens Size2.50mm x 0.80mm [1]
Lens StyleRectangle with Flat Top [1]
Lens TransparencyClear [1]
MfrBivar Inc. [1]
Millicandela Rating250mcd [1]
Mounting TypeSurface Mount, Right Angle [1]
Product StatusActive [1]
Size / Dimension2.80mm L x 1.20mm W [1]
Viewing Angle120° [1]
Voltage - Forward (Vf) (Typ)2.2V [1]
Wavelength - Dominant626nm [1]
Specification references[1]Bivar Inc. SMS1105RC vendor product record ↗
