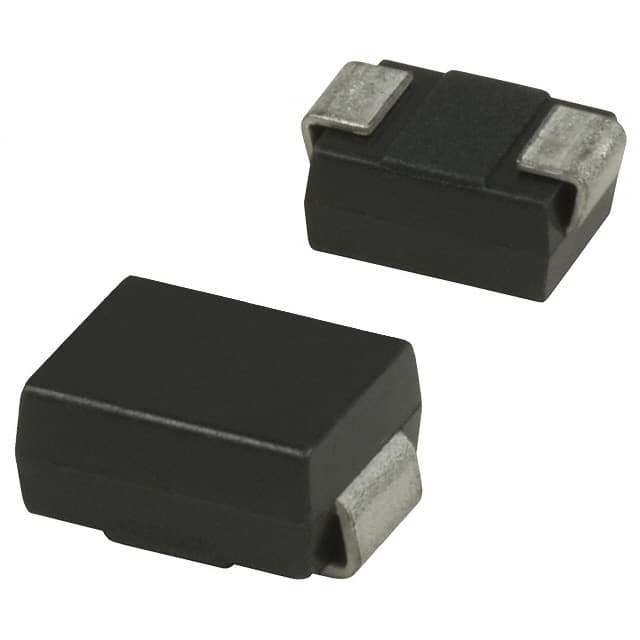

Representative package visualProduct referenceVendor-delivered DigiKey product/package image

Exact MPN15 sourced attributes1 source document

Taiwan Semiconductor Corporation · exact orderable part

SMBJ20CA

Name: SMBJ20CA
Brand: Taiwan Semiconductor Corporation

TVS DIODE 20VWM 32.4VC DO214AA

Original manufacturerCommercial terms confirmed per lot

ManufacturerTaiwan Semiconductor Corporation

Package / caseDO-214AA, SMB

Mounting typeunknown

PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

15 normalized values · 1 validated source

SMBJ20CA technical parameters
Parameter	Value
Applications	General Purpose [1]
Bidirectional Channels	1 [1]
Base Product Number	SMBJ20 [1]
Mfr	Taiwan Semiconductor Corporation [1]
Mounting Type	Surface Mount [1]
Current - Peak Pulse (10/1000µs)	18.5A [1]
Operating Temperature	-55°C ~ 150°C (TJ) [1]
Power Line Protection	No [1]
Product Status	Active [1]
Series	SMBJ [1]
Power - Peak Pulse	600W [1]
Type	Zener [1]
Voltage - Clamping (Max) @ Ipp	32.4V [1]
Voltage - Reverse Standoff (Typ)	20V [1]
Voltage - Breakdown (Min)	22.2V [1]

Catalog relationships

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.
