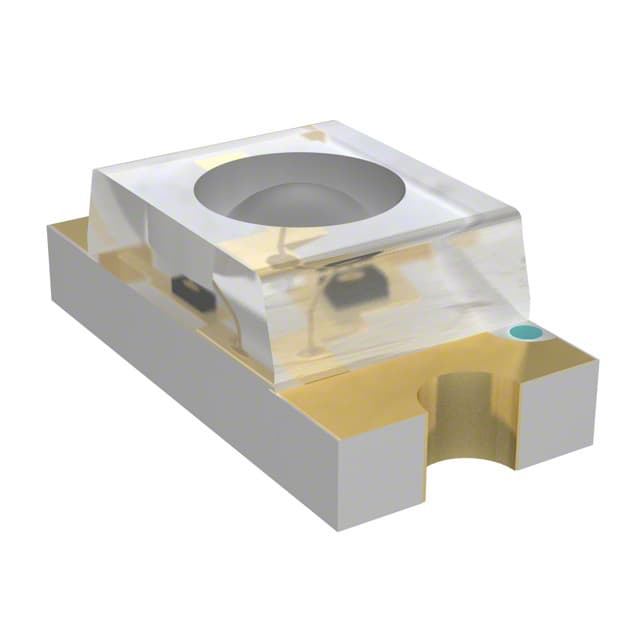

SM1206GC representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes2 source documents

Bivar Inc. · exact orderable part

SM1206GC

LED GREEN CLEAR 1206 SMD

Base Product Number: SM1206
Color: Green
Configuration: Standard
Current - Test: 20mA
Height (Max): 1.10mm
Lens Color: Colorless

Original manufacturerCommercial terms confirmed per lot

ManufacturerBivar Inc.

Package / case1206 (3216 Metric)

Mounting typeunknown

PackingTape & Reel (TR)

Technical parameters

Technical specifications

18 normalized values · 2 validated sources

Report a data issue

SM1206GC technical parameters
Parameter	Value
Base Product Number	SM1206 [2]
Color	Green [2]
Configuration	Standard [2]
Current - Test	20mA [2]
Height (Max)	1.10mm [2]
Lens Color	Colorless [2]
Lens Size	2.00mm x 1.60mm [2]
Lens Style	Rectangle with Flat Top [2]
Lens Transparency	Clear [2]
Mfr	Bivar Inc. [2]
Millicandela Rating	15mcd [2]
Mounting Type	Surface Mount [2]
Product Status	Active [2]
Size / Dimension	3.20mm L x 1.60mm W [2]
Viewing Angle	140° [2]
Voltage - Forward (Vf) (Typ)	2.1V [2]
Wavelength - Dominant	565nm [2]
Wavelength - Peak	568nm [2]

Specification references[1]SM1206GC delivered document ↗[2]Bivar Inc. SM1206GC vendor product record ↗
