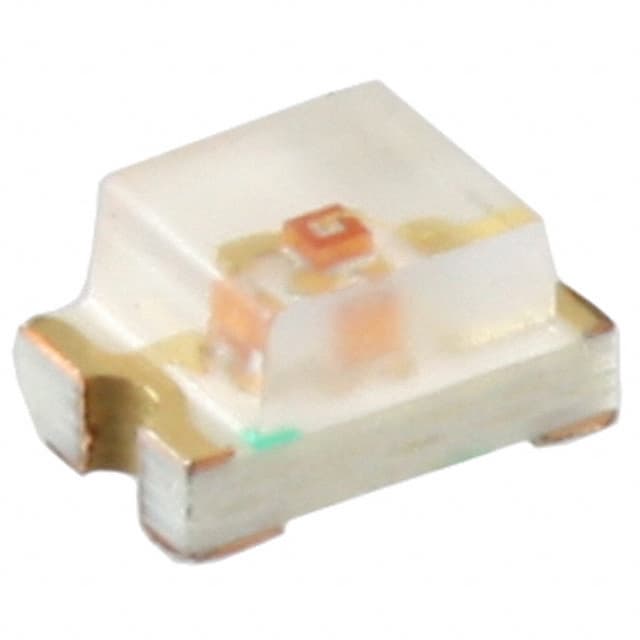

SM0805UBWC vendor-delivered product or package visual
Representative package visualProduct referenceVendor-delivered DigiKey product/package image
Exact MPN18 sourced attributes1 source document

Bivar Inc. · exact orderable part

SM0805UBWC

LED BLUE CLEAR 0805 SMD

Base Product Number
SM0805
Color
Blue
Configuration
Standard
Current - Test
20mA
Height (Max)
1.10mm
Lens Color
Colorless
Original manufacturerCommercial terms confirmed per lot
ManufacturerBivar Inc.
Package / case0805 (2012 Metric)
Mounting typeunknown
PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberSM0805 [1]
ColorBlue [1]
ConfigurationStandard [1]
Current - Test20mA [1]
Height (Max)1.10mm [1]
Lens ColorColorless [1]
Lens Size1.40mm x 1.20mm [1]
Lens StyleRectangle with Flat Top [1]
Lens TransparencyClear [1]
MfrBivar Inc. [1]
Millicandela Rating115mcd [1]
Mounting TypeSurface Mount [1]
Product StatusActive [1]
Size / Dimension2.00mm L x 1.20mm W [1]
Viewing Angle130° [1]
Voltage - Forward (Vf) (Typ)3.3V [1]
Wavelength - Dominant470nm [1]
Wavelength - Peak468nm [1]
Specification references[1]Bivar Inc. SM0805UBWC vendor product record ↗
