Technical parameters
Technical specifications
| Parameter | Value |
|---|---|
| Actual Diameter | 0.142" (3.60mm) [1] |
| Base Product Number | SJ1-35 [1] |
| Body Color | Black [1] |
| Connector Type | Phone Jack [1] |
| Contact Material | Brass [1] |
| Contact Material - Plating | Tin [1] |
| Current Rating (Amps) | 1 A [1] |
| Gender | Female [1] |
| Housing Material | Polybutylene Terephthalate (PBT) [1] |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone [1] |

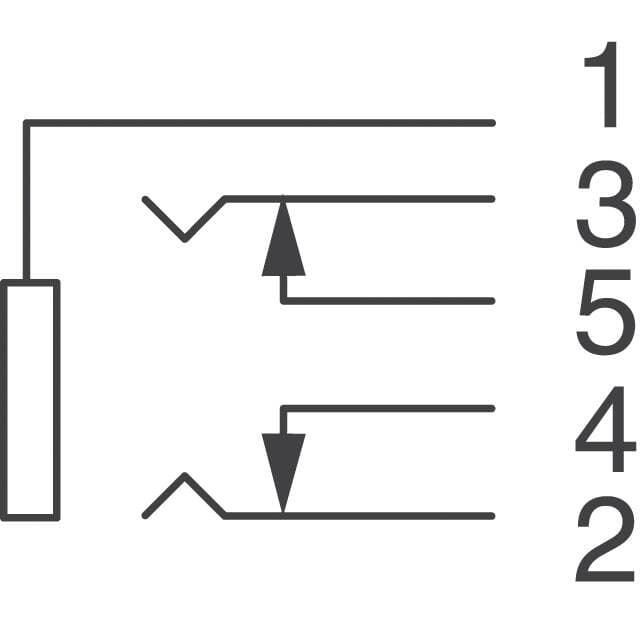

| Internal Switch(s) | Two Switches [1] |
| Mating Length/Depth | 0.551" (14.00mm) [1] |
| Mfr | CUI Devices [1] |
| Mounting Type | Through Hole, Right Angle [1] |
| Number of Positions/Contacts | 3 Conductors, 5 Contacts [1] |
| Operating Temperature | -25°C~85°C [1] |
| Product Status | Active [1] |
| Series | SJ1 [1] |
| Shielding | Unshielded [1] |
| Signal Lines | Stereo (3 Conductor, TRS) [1] |
| Termination | Solder [1] |
| Voltage - Rated | 16VDC [1] |
Specification references[1]CUI Devices SJ1-3535NG vendor product record ↗
