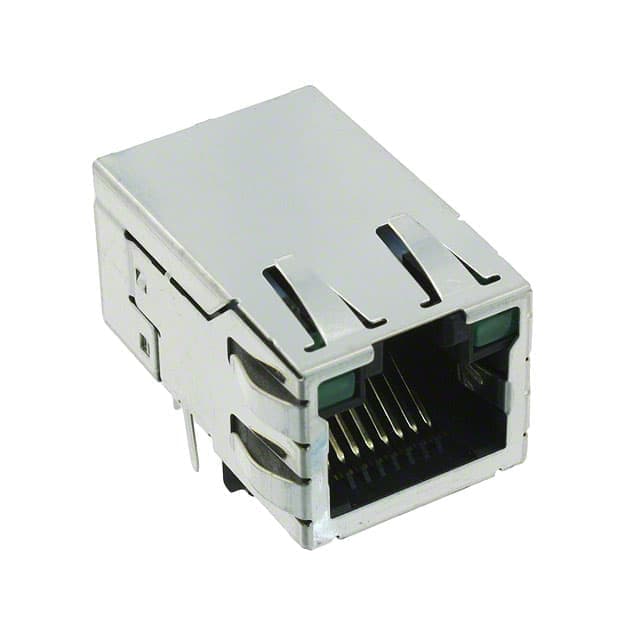

SI-51005-F representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN21 sourced attributes1 source document

Bel Fuse Inc. · exact orderable part

SI-51005-F

CONN JACK 1PORT 1000 BASE-T PCB

Applications
10/100/1000 Base-T, AutoMDIX
Connector Type
RJ45
Height Above Board
0.550" (13.97mm)
Contact Finish
Gold
LED Color
Green - Green
Contact Finish Thickness
50.0µin (1.27µm)
Original manufacturerCommercial terms confirmed per lot
ManufacturerBel Fuse Inc.
Mounting typeunknown
PackingTray

Technical parameters

Technical specifications

21 normalized values · 1 validated source

Report a data issue
ParameterValue
Applications10/100/1000 Base-T, AutoMDIX [1]
Connector TypeRJ45 [1]
Height Above Board0.550" (13.97mm) [1]
Contact FinishGold [1]
LED ColorGreen - Green [1]
Contact Finish Thickness50.0µin (1.27µm) [1]
MfrBel Fuse Inc. [1]
Contact MaterialCopper Alloy [1]
Mounting TypeThrough Hole [1]
FeaturesBoard Guide [1]
Number of Cores per Jack8 [1]
Number of Ports1 [1]
Housing MaterialThermoplastic [1]
Number of Rows1 [1]
Orientation90° Angle (Right) [1]
Product StatusActive [1]
ShieldingShielded, EMI Finger [1]
Tab DirectionUp [1]
TerminationSolder [1]
SeriesMagJack® ST SI-50000 [1]
Shield MaterialCopper Alloy [1]
Specification references[1]Bel Fuse Inc. SI-51005-F vendor product record ↗
