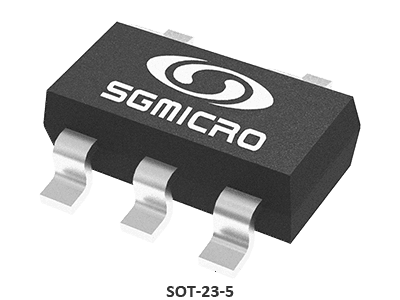

Representative SGMICRO SOT-23-5 package render for SGM8541XN5/TR and SGM8701YN5G/TR

Representative package visualProduct reference

Exact MPN17 sourced attributes1 manufacturer document

SGMICRO · exact orderable part

SGM8701YN5G/TR

SGMICRO 300 nA micropower comparator with rail-to-rail input and push-pull CMOS output in SOT-23-5.

Number of Channels: 1
Minimum Supply Voltage: 1.4 V
Maximum Supply Voltage: 5.5 V
Propagation Delay: 6000 ns
Package / Case: SOT-23-5
Propagation Delay Condition: Typical at 1.4 V supply

China-origin manufacturerCommercial terms confirmed per lot

ManufacturerSGMICRO

Package / caseSOT-23-5, 5-pin

Mounting typesurface mount

Lifecycleactive

Packing3,000 units/tape-and-reel

Temperature grade-40 to 85 °C

Technical parameters

Technical specifications

17 normalized values · 1 manufacturer source

Report a data issue

SGM8701YN5G/TR technical parameters
Parameter	Value
Number of Channels	1 [1]
Minimum Supply Voltage	1.4 V [1]
Maximum Supply Voltage	5.5 V [1]
Propagation Delay	6000 ns [1]
Package / Case	SOT-23-5 [1]
Propagation Delay Condition	Typical at 1.4 V supply [1]
Typical Quiescent Current	300 nA [1]
Output Type	Push-pull CMOS [1]
Rail-to-Rail Input	Yes [1]
Rail-to-Rail Output	Yes [1]
Typical Output Drive	19 mA [1]
Pin Count	5 [1]
Top Marking	S59XX; XX is date code [1]
Operating Temperature	-40 to 85 °C [1]
Manufacturer Packing Quantity	3000 [1]
RoHS Compliant	Yes [1]
Moisture Sensitivity Level	MSL3 [1]

Specification references[1]SGMICRO SGM8701 Nanopower Comparator Datasheet, reviewed 2026-09-10; 14 pages ↗

Product overview

SGM8701YN5G/TR at a glance

The reviewed record identifies SGM8701YN5G/TR as an exact SGMICRO voltage comparators order code in SOT-23-5, 5-pin. Key selection points include moisture sensitivity level of MSL3 and rohs compliant of true.
