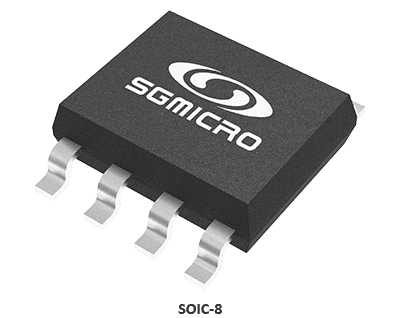

Representative SGMICRO SOIC-8 package render for SGM8052XS/TR

Representative package visualProduct reference

Exact MPN16 sourced attributes1 manufacturer document

SGMICRO · exact orderable part

SGM8052XS/TR

SGMICRO dual high-speed CMOS operational amplifier with 250 MHz unity-gain closed-loop bandwidth and rail-to-rail output only.

Number of Channels: 2
Minimum Supply Voltage: 2.5 V
Maximum Supply Voltage: 5.5 V
Package / Case: SOIC-8
-3 dB Bandwidth: 250 MHz
Typical Slew Rate: 130 V/µs

China-origin manufacturerCommercial terms confirmed per lot

ManufacturerSGMICRO

Package / caseSOIC-8, 8-pin

Mounting typesurface mount

Lifecycleactive

Packing2,500 units/tape-and-reel

Temperature grade-40 to 125 °C

Technical parameters

Technical specifications

16 normalized values · 1 manufacturer source

Report a data issue

SGM8052XS/TR technical parameters
Parameter	Value
Number of Channels	2 [1]
Minimum Supply Voltage	2.5 V [1]
Maximum Supply Voltage	5.5 V [1]
Package / Case	SOIC-8 [1]
-3 dB Bandwidth	250 MHz [1]
Typical Slew Rate	130 V/µs [1]
Maximum Input Offset Voltage	8 mV [1]
Typical Quiescent Current per Channel	2300 µA [1]
Rail-to-Rail Input	No [1]
Rail-to-Rail Output	Yes [1]
Pin Count	8 [1]
Top Marking	SGM8052XS plus date/vendor code [1]
Operating Temperature	-40 to 125 °C [1]
Manufacturer Packing Quantity	2500 [1]
RoHS Compliant	Yes [1]
Moisture Sensitivity Level	MSL3 [1]

Specification references[1]SGMICRO SGM8051/2/3/4/5 High-Speed Operational Amplifier Datasheet, reviewed 2026-09-10; 22 pages; PDF revision dated 2017 ↗
