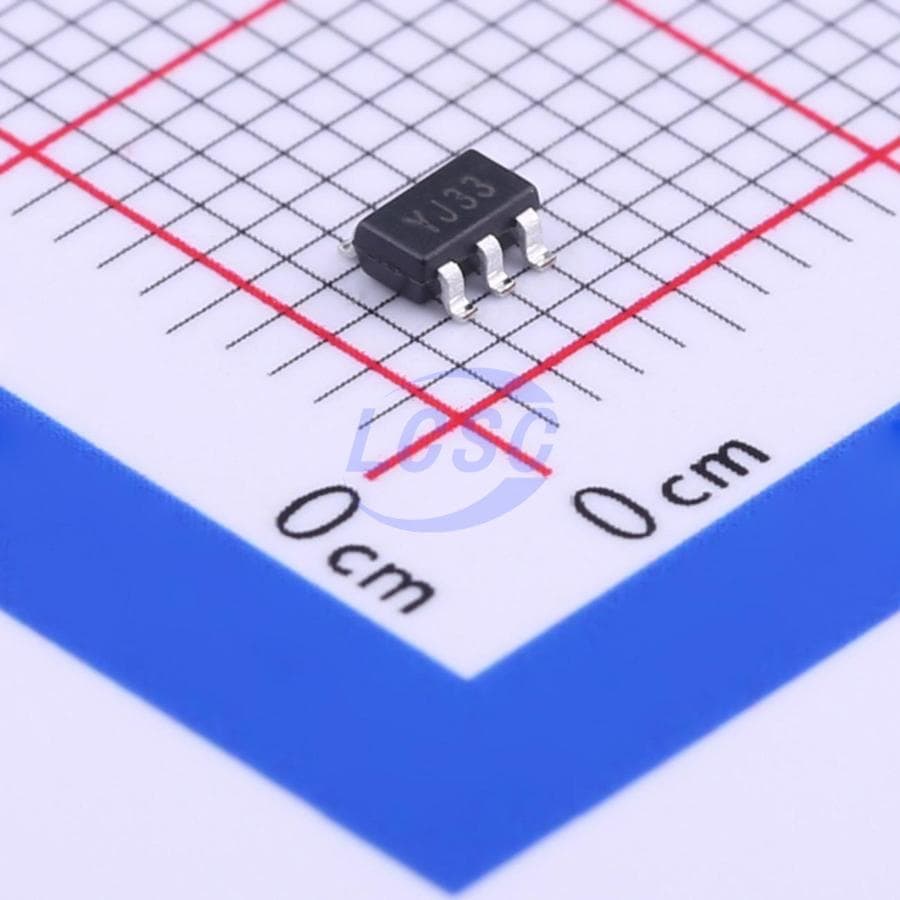

Representative SOT-23-5 package reference for SGM2019-3.3YN5G/TR

Representative package visualProduct reference

Exact MPN13 sourced attributes1 manufacturer document

SGMICRO · exact orderable part

SGM2019-3.3YN5G/TR

SGMICRO 300 mA fixed 3.3 V low-noise high-PSRR LDO for legacy demand.

Maximum Input Voltage: 5.5 V
Output Voltage: 3.3 V
Output Current: 0.3 A
Dropout Voltage: 270 mV
Package / Case: SOT-23-5
Minimum Input Voltage: 2.5 V

China-origin manufacturerCommercial terms confirmed per lot

ManufacturerSGMICRO

Package / caseSOT-23-5

Mounting typesurface mount

Lifecyclenot recommended for new designs

Packing3,000 units/tape-and-reel

Temperature grade-40 to 85 °C

Technical parameters

Technical specifications

13 normalized values · 1 manufacturer source

Report a data issue

SGM2019-3.3YN5G/TR technical parameters
Parameter	Value
Maximum Input Voltage	5.5 V [1]
Output Voltage	3.3 V [1]
Output Current	0.3 A [1]
Dropout Voltage	270 mV [1]
Package / Case	SOT-23-5 [1]
Minimum Input Voltage	2.5 V [1]
Output Accuracy	2.5 % [1]
Pin Count	5 [1]
Top Marking	YJ33 [1]
Operating Temperature	-40 to 85 °C [1]
Manufacturer Packing Quantity	3000 [1]
Output Noise	30 µVrms [1]
Power-Supply Rejection	74 dB [1]

Specification references[1]SGMICRO SGM2019 Datasheet, Rev C.1; reviewed 2026-09-10; 17 pages ↗

Product overview

SGM2019-3.3YN5G/TR at a glance

The reviewed record identifies SGM2019-3.3YN5G/TR as an exact SGMICRO ldo regulators order code in SOT-23-5. Key selection points include power-supply rejection of 74 dB and output noise of 30 µVrms.

Key features

Verified device capabilities

Power-Supply Rejection: 74 dB under the cited manufacturer conditions.
Output Noise: 30 µVrms under the cited manufacturer conditions.
Manufacturer Packing Quantity: 3000 under the cited manufacturer conditions.
Operating Temperature: -40 to 85 °C under the cited manufacturer conditions.
Top Marking: YJ33 under the cited manufacturer conditions.

Applications

Where the device is used

Electronic designs whose requirements match the documented electrical, package and environmental parameters.

Ordering information

Exact code and packing

SGM2019-3.3YN5G/TR identifies the exact SGMICRO order code in SOT-23-5. Packing record: 3,000 units/tape-and-reel. Current lot terms are confirmed in the quotation.

3,000 units/tape-and-reel

Design notes

Use the rating in context

Use the cited operating conditions for SGM2019-3.3YN5G/TR; do not convert an absolute maximum, headline rating or family-level value into an unconditional board-level guarantee.

The displayed package image is representative and does not prove body marking, date code or shipment lot.

SGMICRO currently marks this exact order code Not Recommended for New Design; source buyers should confirm a supported alternative for new designs. Output accuracy is ±2.5% at 25 °C and 0.1 mA load. Dropout is 270 mV typical at 300 mA and 25 °C, noise is 30 µVrms typical from 10 Hz to 100 kHz, and PSRR is 74 dB typical at 1 kHz under the documented capacitor and load conditions.

Quotation and fulfillment

What is confirmed before an order

Commercial facts belong to the quoted lot. The catalog does not invent live stock, price, date code or lead time.

Exact-part check

Manufacturer, full suffix, package, quantity and requested documentation are captured in the RFQ.

Lot-level quotation

Price, available quantity, date code, condition and lead time are written into the quotation when confirmed.

Inspection request

Label, marking, packing and traceability requirements can be specified before shipment.

Shipping and payment

Shipping method, Incoterm and available payment route are agreed in the commercial offer.

Technical and ordering FAQ

Questions buyers ask about SGM2019-3.3YN5G/TR

Answers distinguish the IC itself from assembled modules and keep absolute limits separate from normal operating conditions.

What package does SGM2019-3.3YN5G/TR use?

SGM2019-3.3YN5G/TR is recorded in SOT-23-5. Confirm the complete suffix and packing in the quotation.

What is the documented power-supply rejection?

The cited manufacturer record lists 74 dB. Apply the source's test and operating conditions.

How should the output noise be interpreted?

The normalized catalog value is 30 µVrms. The linked evidence controls its exact conditions and revision.

Does this page prove current SGM2019-3.3YN5G/TR stock?

No. Technical evidence identifies the device; stock, date code, price, MOQ and lead time require a current verified offer or quotation.

Can SGM2019-3.3YN5G/TR be replaced by a similar part without review?

No automatic drop-in claim is made. Compare electrical limits, package, pinout, functions and qualification before substitution.
