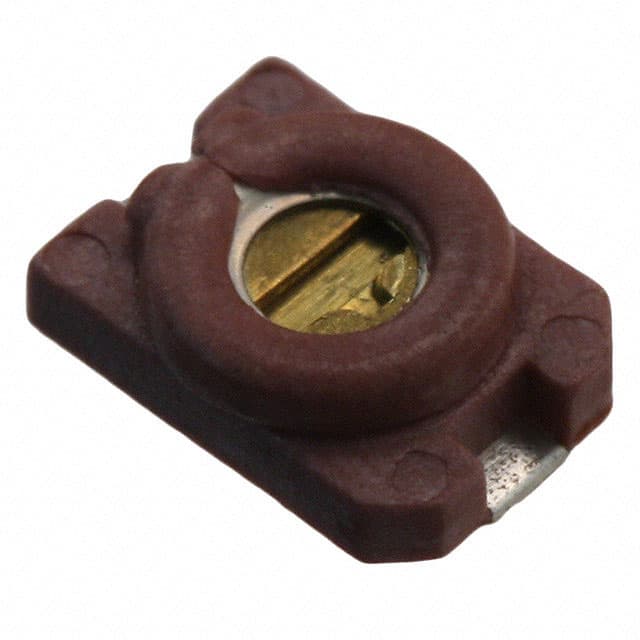

SGC3S200 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN13 sourced attributes1 source document

EW Electronics · exact orderable part

SGC3S200

CAP TRIMMER 5.5-20PF 100V SMD

Adjustment Type
Top
Capacitance Range
5.8 ~ 20pF
Dielectric Material
Ceramic
Features
Low Profile
Height - Seated (Max)
0.061" (1.54mm)
Mfr
EW Electronics
Original manufacturerCommercial terms confirmed per lot
ManufacturerEW Electronics
Mounting typeunknown
PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

13 normalized values · 1 validated source

Report a data issue
ParameterValue
Adjustment TypeTop [1]
Capacitance Range5.8 ~ 20pF [1]
Dielectric MaterialCeramic [1]
FeaturesLow Profile [1]
Height - Seated (Max)0.061" (1.54mm) [1]
MfrEW Electronics [1]
Mounting TypeSurface Mount [1]
Operating Temperature-40°C ~ 85°C [1]
Product StatusActive [1]
Q @ Freq250 @ 1MHz [1]
SeriesSGC3S [1]
Size / Dimension0.177" L x 0.126" W (4.50mm x 3.20mm) [1]
Voltage - Rated100 V [1]
Specification references[1]EW Electronics SGC3S200 vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerEW ElectronicsView brand page →CategoryTrimmers, Variable CapacitorsView category page →
