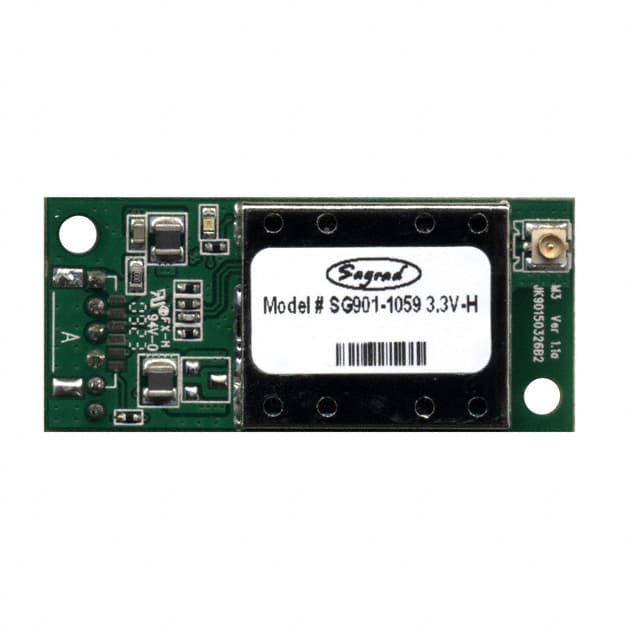

SG901-1059B-5.0-H representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

Sagrad Inc. · exact orderable part

SG901-1059B-5.0-H

RF TXRX MODULE WIFIIPEX SMD

Antenna Type: Antenna Not Included, I-PEX
Current - Receiving: 110mA (Max)
Current - Transmitting: 110mA (Max)
DigiKey Programmable: Not Verified
Data Rate: 150Mbps
Frequency: 2.4GHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerSagrad Inc.

Package / caseModule

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue

SG901-1059B-5.0-H technical parameters
Parameter	Value
Antenna Type	Antenna Not Included, I-PEX [1]
Current - Receiving	110mA (Max) [1]
Current - Transmitting	110mA (Max) [1]
DigiKey Programmable	Not Verified [1]
Data Rate	150Mbps [1]
Frequency	2.4GHz [1]
Mfr	Sagrad Inc. [1]
Modulation	BPSK, CCK, OFDM, QPSK [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-15°C ~ 65°C [1]
Power - Output	20dBm [1]
Part Status	Obsolete [1]
Protocol	802.11b/g/n [1]
RF Family/Standard	WiFi [1]
Sensitivity	-85dBm [1]
Serial Interfaces	USB [1]
Voltage - Supply	5V [1]

Specification references[1]Sagrad Inc. SG901-1059B-5.0-H vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerSagrad Inc.View brand page →CategoryRF Transceiver Modules and ModemsView category page →

Related exact parts

Other published variants
