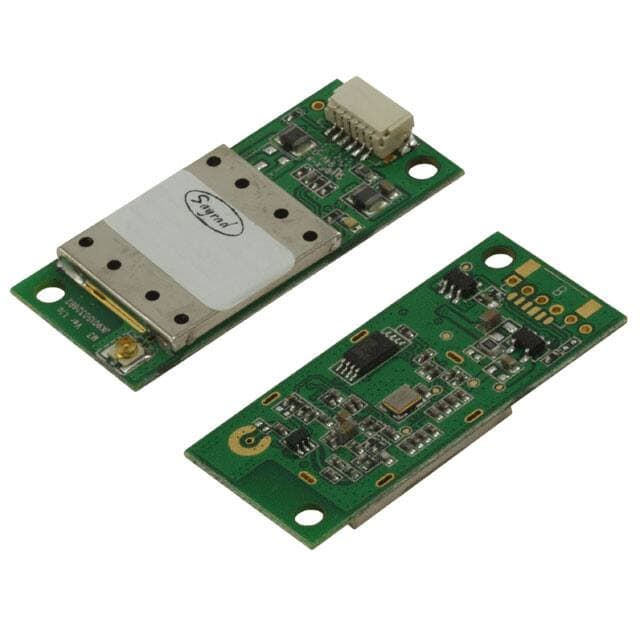

SG901-1059-5C representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN16 sourced attributes1 source document

Sagrad Inc. · exact orderable part

SG901-1059-5C

RF TXRX MODULE WIFI I-PEX SMD

Antenna Type
Antenna Not Included, I-PEX
Current - Receiving
110mA (Max)
Current - Transmitting
110mA (Max)
Data Rate
150Mbps
Frequency
2.4GHz
Mfr
Sagrad Inc.
Original manufacturerCommercial terms confirmed per lot
ManufacturerSagrad Inc.
Package / caseModule
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue
ParameterValue
Antenna TypeAntenna Not Included, I-PEX [1]
Current - Receiving110mA (Max) [1]
Current - Transmitting110mA (Max) [1]
Data Rate150Mbps [1]
Frequency2.4GHz [1]
MfrSagrad Inc. [1]
ModulationBPSK, CCK, OFDM, QPSK [1]
Mounting TypeSurface Mount [1]
Operating Temperature0°C~50°C [1]
Power - Output19dBm [1]
Product StatusObsolete [1]
Protocol802.11b/g/n [1]
RF Family/StandardWiFi [1]
Sensitivity-84dBm [1]
Serial InterfacesUSB [1]
Voltage - Supply5V [1]
Specification references[1]Sagrad Inc. SG901-1059-5C vendor product record ↗
