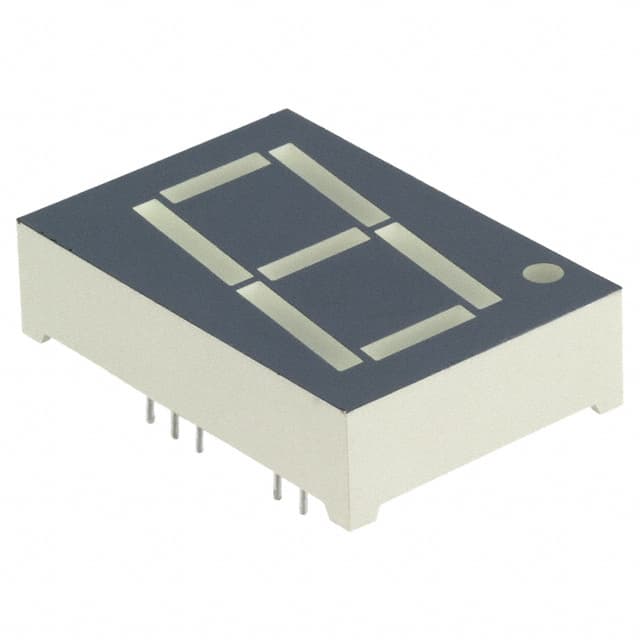

SA10-11EWA representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN14 sourced attributes1 source document

Kingbright · exact orderable part

SA10-11EWA

DISPLAY 7SEG 1.02" SGL RED 14DIP

Base Product Number: SA10-11
Color: Red
Common Pin: Common Anode
Current - Test: 20mA
Digit/Alpha Size: 1.02" (26.00mm)
Display Type: 7-Segment

Original manufacturerCommercial terms confirmed per lot

ManufacturerKingbright

Package / case14-DIP (0.600", 15.24mm)

Mounting typeunknown

PackingTube

Technical parameters

Technical specifications

14 normalized values · 1 validated source

Report a data issue

SA10-11EWA technical parameters
Parameter	Value
Base Product Number	SA10-11 [1]
Color	Red [1]
Common Pin	Common Anode [1]
Current - Test	20mA [1]
Digit/Alpha Size	1.02" (26.00mm) [1]
Display Type	7-Segment [1]
Mfr	Kingbright [1]
Millicandela Rating	23mcd [1]
Number of Characters	1 [1]
Power Dissipation (Max)	150mW [1]
Product Status	Active [1]
Size / Dimension	1.295" H x 0.886" W x 0.335" D (32.90mm x 22.50mm x 8.50mm) [1]
Voltage - Forward (Vf) (Typ)	4V [1]
Wavelength - Peak	627nm [1]

Specification references[1]Kingbright SA10-11EWA vendor product record ↗
