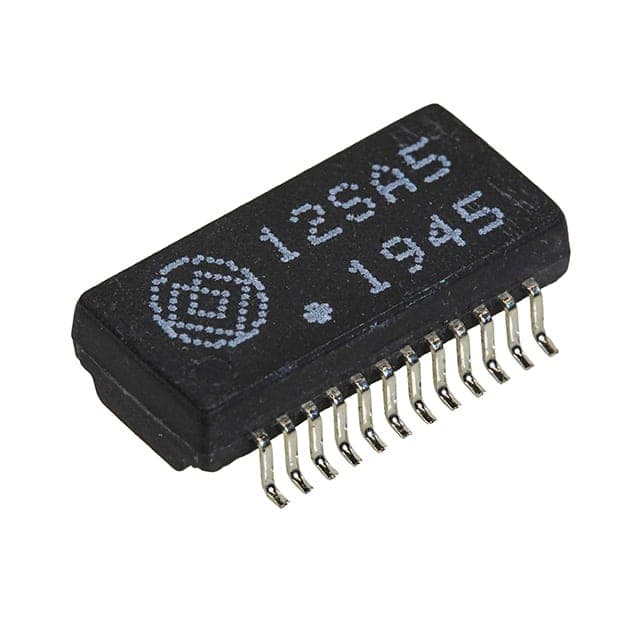

RT12SA5-RU representative package visual — not an exact-product photograph

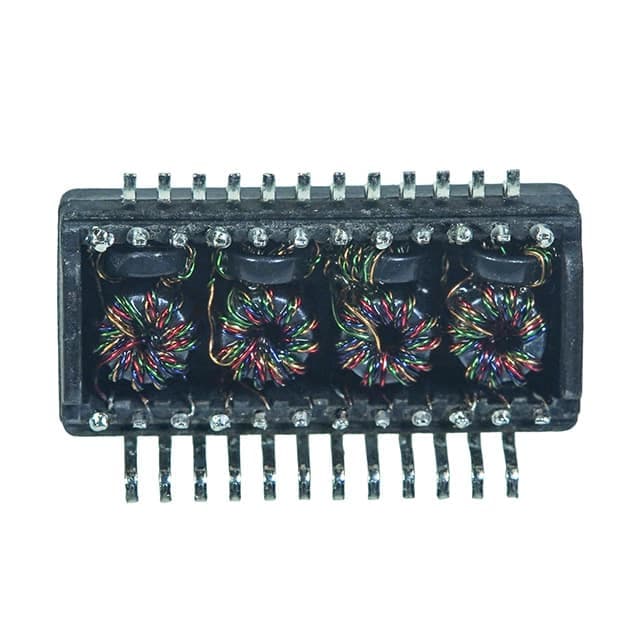

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 2
Exact MPN10 sourced attributes1 source document

Mag Layers · exact orderable part

RT12SA5-RU

DISCRETE PULSE LAN XFMR 1G

Height - Seated (Max)
0.158" (4.01mm)
Inductance
350µH
Mfr
Mag Layers
Mounting Type
Surface Mount
Operating Temperature
0°C~70°C
Product Status
Active
Original manufacturerCommercial terms confirmed per lot
ManufacturerMag Layers
Mounting typeunknown
PackingTape & Reel (TR)

Technical parameters

Technical specifications

10 normalized values · 1 validated source

Report a data issue
ParameterValue
Height - Seated (Max)0.158" (4.01mm) [1]
Inductance350µH [1]
MfrMag Layers [1]
Mounting TypeSurface Mount [1]
Operating Temperature0°C~70°C [1]
Product StatusActive [1]
SeriesTransformer [1]
Size / Dimension0.594" L x 0.280" W (15.10mm x 7.10mm) [1]
Transformer Type1000 Base-T [1]
Turns Ratio - Primary:Secondary1CT:1CT [1]
Specification references[1]Mag Layers RT12SA5-RU vendor product record ↗
