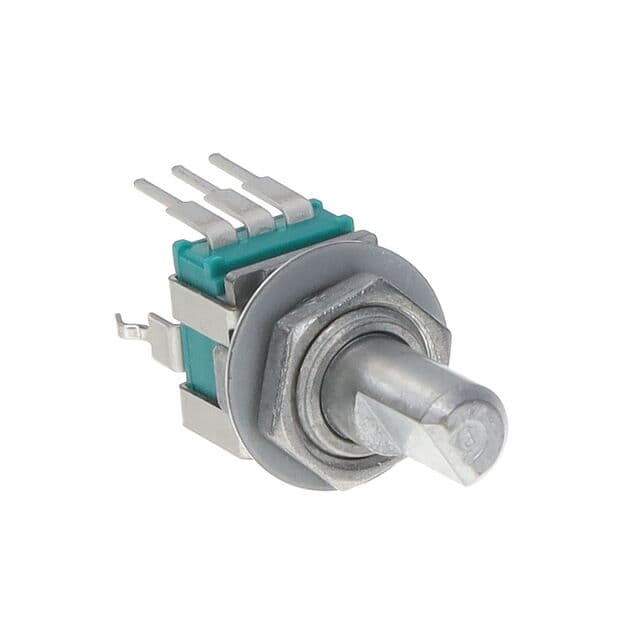

RK09L1140A5L representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN19 sourced attributes1 source document

Alps Alpine · exact orderable part

RK09L1140A5L

POT 10K OHM 1/20W LINEAR

Actuator Diameter
0.236" (6.00mm)
Actuator Length
0.591" (15.00mm)
Actuator Type
Flatted
Adjustment Type
Top Adjustment
Built in Switch
None
Manufacturer
Alps Alpine
Original manufacturerCommercial terms confirmed per lot
ManufacturerAlps Alpine
Mounting typeunknown
PackingTray

Technical parameters

Technical specifications

19 normalized values · 1 validated source

Report a data issue
ParameterValue
Actuator Diameter0.236" (6.00mm) [1]
Actuator Length0.591" (15.00mm) [1]
Actuator TypeFlatted [1]
Adjustment TypeTop Adjustment [1]
Built in SwitchNone [1]
ManufacturerAlps Alpine [1]
Bushing ThreadM9 x 0.75 [1]
Mounting TypePanel Mount [1]
Number of Gangs1 [1]
Number of Turns1.0 [1]
Part StatusActive [1]
Power (Watts)0.05W, 1/20W [1]
Resistance (Ohms)10k [1]
Rotation300° [1]
SeriesRK09L [1]
Size - BodyRectangular - 0.447" x 0.354" Face (11.35mm x 9.00mm) [1]
TaperLinear [1]
Termination StylePC Pins, Board Locks [1]
Tolerance±20% [1]
Specification references[1]Alps Alpine RK09L1140A5L vendor product record ↗
