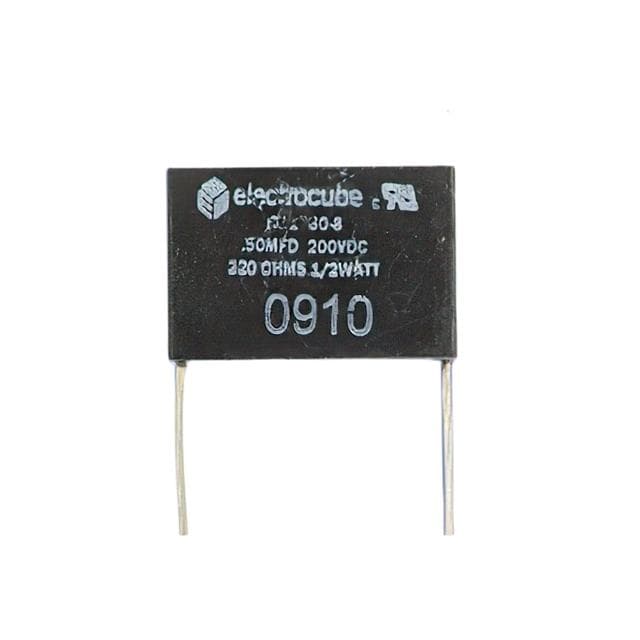

RG1780-6 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN14 sourced attributes1 source document

Electrocube · exact orderable part

RG1780-6

RC NETWORK, 0.5 MFD, 100 OHM, 12

Applications
General Purpose
ESD Protection
No
Filter Order
1st
Height
0.660" (16.76mm)
Mfr
Electrocube
Mounting Type
Through Hole
Original manufacturerCommercial terms confirmed per lot
ManufacturerElectrocube
Package / caseRadial
Mounting typeunknown
PackingBox

Technical parameters

Technical specifications

14 normalized values · 1 validated source

Report a data issue
ParameterValue
ApplicationsGeneral Purpose [1]
ESD ProtectionNo [1]
Filter Order1st [1]
Height0.660" (16.76mm) [1]
MfrElectrocube [1]
Mounting TypeThrough Hole [1]
Number of Channels1 [1]
Operating Temperature-40°C ~ 80°C [1]
Product StatusActive [1]
Size / Dimension1.000" L x 0.380" W (25.40mm x 9.65mm) [1]
TechnologyRC [1]
TypeLow Pass [1]
ValuesR = 100Ohm, C = 0.5µF [1]
Voltage - Rated200V [1]
Specification references[1]Electrocube RG1780-6 vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerElectrocubeView brand page →CategoryEMI/RFI Filters (LC, RC Networks)View category page →

Related exact parts

Other published variants

RG1676-16RG1676-38RG1780-8RG1781-1RG1781-6RG1781-8RG1782-3RG1782-8RG1783-10
