MPNHarborRFQ 0

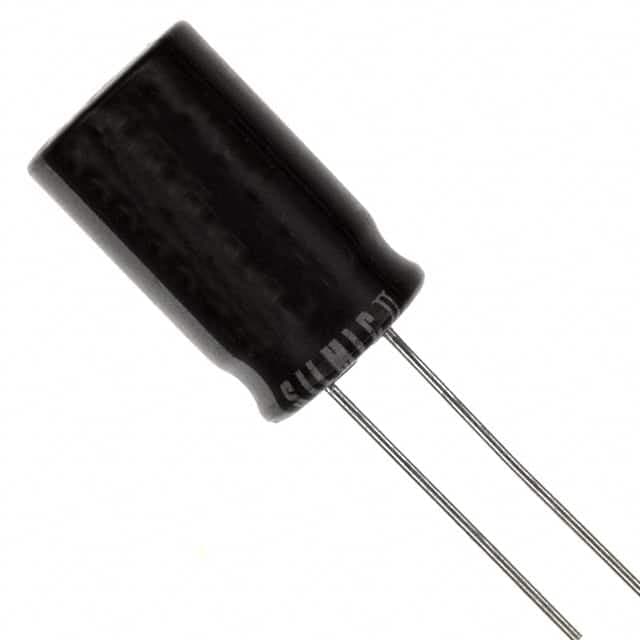

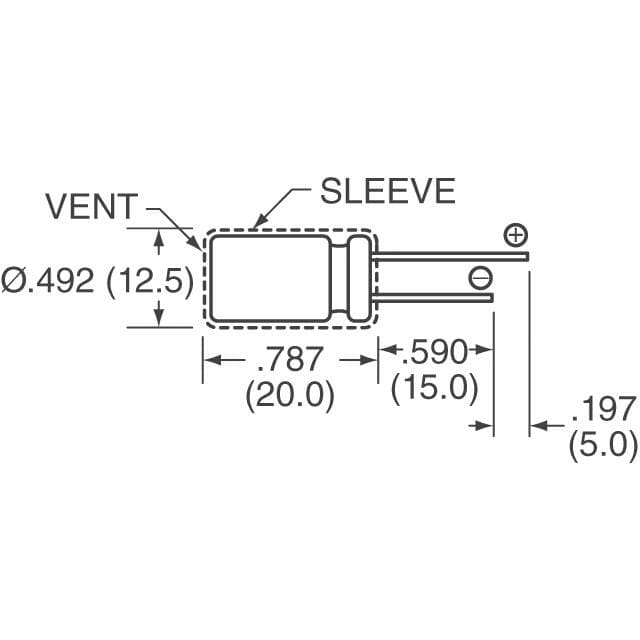

RFS-6V102MI5#5 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 2
Exact MPN15 sourced attributes1 source document

Elna America · exact orderable part

RFS-6V102MI5#5

CAP ALUM 1000UF 20% 6.3V RADIAL

Applications
Audio
Capacitance
1000 µF
Lead Spacing
0.197" (5.00mm)
Height - Seated (Max)
0.787" (20.00mm)
Lifetime @ Temp.
1000 Hrs @ 85°C
Mfr
Elna America
Original manufacturerCommercial terms confirmed per lot
ManufacturerElna America
Package / caseRadial, Can
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

15 normalized values · 1 validated source

Report a data issue
ParameterValue
ApplicationsAudio [1]
Capacitance1000 µF [1]
Lead Spacing0.197" (5.00mm) [1]
Height - Seated (Max)0.787" (20.00mm) [1]
Lifetime @ Temp.1000 Hrs @ 85°C [1]
MfrElna America [1]
Mounting TypeThrough Hole [1]
Operating Temperature-40°C~85°C [1]
Product StatusObsolete [1]
PolarizationPolar [1]
Ripple Current @ Low Frequency710 mA @ 120 Hz [1]
SeriesRFS, SILMIC II [1]
Size / Dimension0.492" Dia (12.50mm) [1]
Tolerance±20% [1]
Voltage - Rated6.3 V [1]
Specification references[1]Elna America RFS-6V102MI5#5 vendor product record ↗
