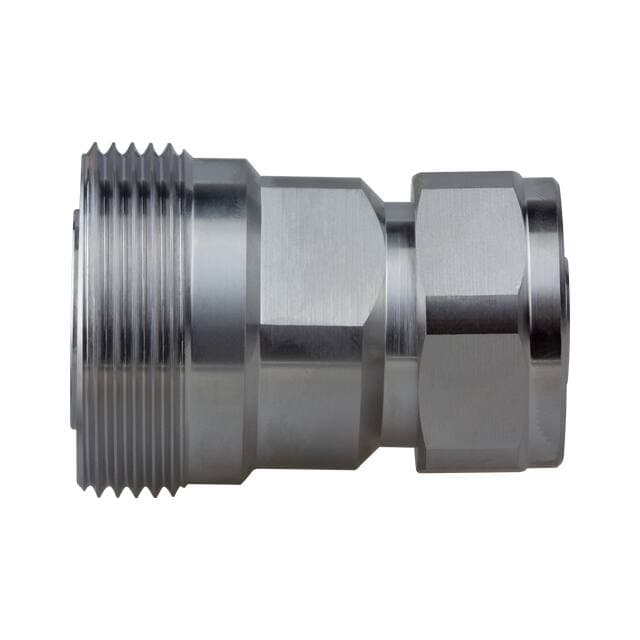

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN22 sourced attributes1 source document

RF Industries · exact orderable part

RFD-1681-4

Name: RFD-1681-4
Brand: RF Industries

7/16 DIN FEMALE-4.1/9.5 MALE

Original manufacturerCommercial terms confirmed per lot

ManufacturerRF Industries

Mounting typeunknown

PackingBag

Technical parameters

Technical specifications

22 normalized values · 1 validated source

RFD-1681-4 technical parameters
Parameter	Value
Adapter Series	7/16 DIN to 4.1/9.5 [1]
Adapter Type	Plug to Jack [1]
Base Product Number	RFD-1681 [1]
Body Material	Brass [1]
Body Finish	White Bronze [1]
Center Contact Material	Phosphor Bronze [1]
Center Gender	Female to Male [1]
Conversion Type	Between Series [1]
Center Contact Plating	Silver [1]
Convert From (Adapter End)	4.1/9.5 Plug, Male Pin [1]
Convert To (Adapter End)	7/16 Jack, Female Socket [1]
Fastening Type	Threaded, Threaded [1]
Frequency - Max	7.5 GHz [1]
Impedance	50Ohm [1]
Dielectric Material	Polytetrafluoroethylene (PTFE) [1]
Mfr	RF Industries [1]
Mounting Type	Free Hanging (In-Line) [1]
Product Status	Active [1]
Insertion Loss	0.05dB [1]
Style	Straight [1]
Mating Cycles	500 [1]
Operating Temperature	-55°C~85°C [1]
