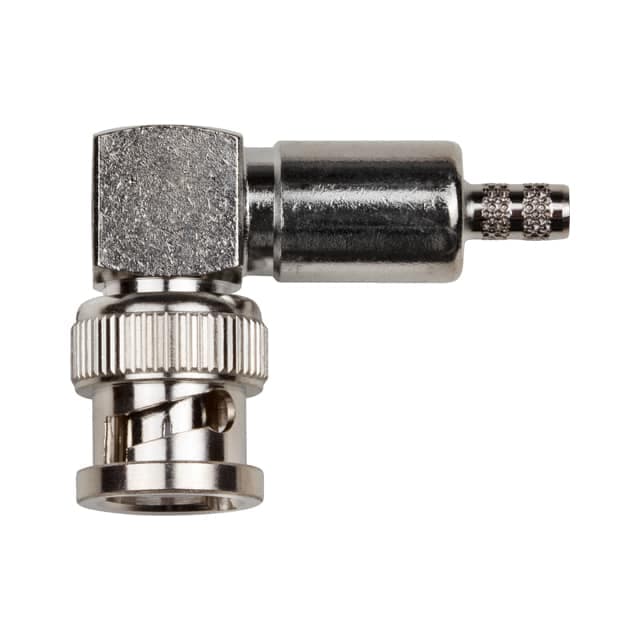

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN21 sourced attributes1 source document

RF Industries · exact orderable part

RFB-1110-1

Name: RFB-1110-1
Brand: RF Industries

BNC MALE R/A CRIMP; 50 OHMS

Original manufacturerCommercial terms confirmed per lot

ManufacturerRF Industries

Mounting typeFree Hanging (In-Line), Right Angle

PackingBag

Technical parameters

Technical specifications

21 normalized values · 1 validated source

RFB-1110-1 technical parameters
Parameter	Value
Base Product Number	RFB-1110 [1]
Body Finish	Nickel [1]
Body Material	Brass [1]
Cable Group	RG-58, 58A, 58C, 141, 141A [1]
Center Contact Material	Brass [1]
Center Contact Plating	Gold [1]
Connector Style	BNC [1]
Connector Type	Plug, Male Pin [1]
Contact Termination	Crimp [1]
Dielectric Material	Polytetrafluoroethylene (PTFE) [1]
Fastening Type	Bayonet Lock [1]
Frequency - Max	4 GHz [1]
Housing Color	Silver [1]
Impedance	50Ohm [1]
Mfr	RF Industries [1]
Mounting Type	Free Hanging (In-Line), Right Angle [1]
Number of Ports	1 [1]
Operating Temperature	-65°C~85°C [1]
Product Status	Active [1]
Shield Termination	Crimp [1]
Voltage Rating	500 V [1]
