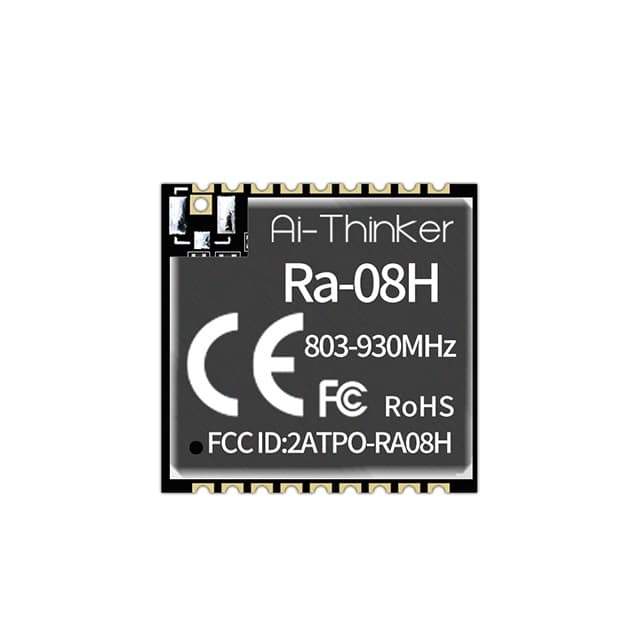

RA-08H vendor-delivered product or package visual

Representative package visualProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

Ai-Thinker · exact orderable part

RA-08H

RF TXRX MOD ISM < 1GHZ I-PEX SMD

Antenna Type: Antenna Not Included, I-PEX
Current - Receiving: 9.5mA
Current - Transmitting: 115mA
DigiKey Programmable: Not Verified
Frequency: 410MHz ~ 525MHz
Memory Size: 128kB Flash, 16kB SRAM

Original manufacturerCommercial terms confirmed per lot

ManufacturerAi-Thinker

Package / case18-SMD Module

Mounting typeunknown

PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue

RA-08H technical parameters
Parameter	Value
Antenna Type	Antenna Not Included, I-PEX [1]
Current - Receiving	9.5mA [1]
Current - Transmitting	115mA [1]
DigiKey Programmable	Not Verified [1]
Frequency	410MHz ~ 525MHz [1]
Memory Size	128kB Flash, 16kB SRAM [1]
Mfr	Ai-Thinker [1]
Modulation	BPSK, FSK, GFSK, GMSK, MSK [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-40°C ~ 85°C [1]
Power - Output	21dBm [1]
Product Status	Active [1]
Protocol	LoRa™ [1]
RF Family/Standard	General ISM < 1GHz [1]
Sensitivity	-138dBm [1]
Serial Interfaces	ADC, GPIO, I2C, I2S, PWM, SPI, UART [1]
Voltage - Supply	2.7V ~ 3.6V [1]

Specification references[1]Ai-Thinker RA-08H vendor product record ↗
