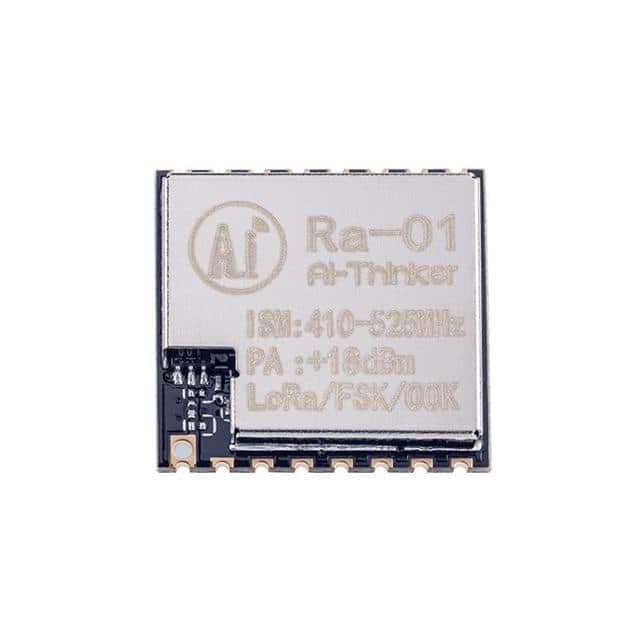

RA-01 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Ai-Thinker · exact orderable part

RA-01

LORA MODULE, 433MHZ, SEMTECH SX1

Antenna Type: Antenna Not Included
Current - Receiving: 12.15mA
Current - Transmitting: 93mA ~ 97mA
Data Rate: 300kbps
Frequency: 410MHz ~ 525MHz
Mfr: Ai-Thinker

Original manufacturerCommercial terms confirmed per lot

ManufacturerAi-Thinker

Package / case16-SMD Module

Mounting typeunknown

PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

RA-01 technical parameters
Parameter	Value
Antenna Type	Antenna Not Included [1]
Current - Receiving	12.15mA [1]
Current - Transmitting	93mA ~ 97mA [1]
Data Rate	300kbps [1]
Frequency	410MHz ~ 525MHz [1]
Mfr	Ai-Thinker [1]
Modulation	FSK, GFSK, GMSK, MSK, OOK [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-30°C~85°C [1]
Power - Output	18dBm [1]
Product Status	Active [1]
Protocol	LoRa™ [1]
RF Family/Standard	General ISM < 1GHz [1]
Sensitivity	-141dBm [1]
Serial Interfaces	SPI [1]
Voltage - Supply	2.5V ~ 3.7V [1]

Specification references[1]Ai-Thinker RA-01 vendor product record ↗
