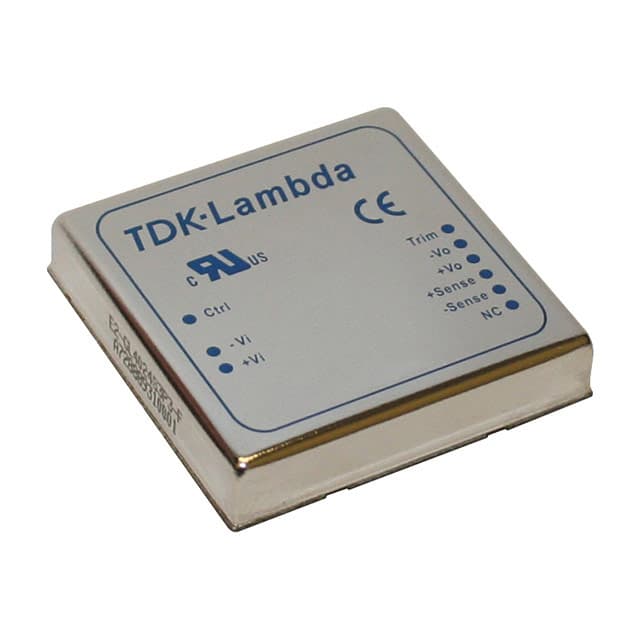

PXF40-12T3312 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN20 sourced attributes1 source document

TDK-Lambda · exact orderable part

PXF40-12T3312

DC DC CONVERTER 3.3V +/-12V 40W

Type
Isolated Module
Number of Outputs
3
Voltage - Input (Min)
9V
Voltage - Input (Max)
18V
Voltage - Output 1
3.3V
Voltage - Output 2
12V
Voltage - Output 3
-12V
Current - Output (Max)
6A, 400mA, 400mA
Power (Watts)
40 W
Original manufacturerCommercial terms confirmed per lot
ManufacturerTDK-Lambda
Package / case9-DIP Module
Mounting typeThrough Hole
PackingBulk

Technical parameters

Technical specifications

20 normalized values · 1 validated source

Report a data issue
ParameterValue
ApplicationsITE (Commercial) [1]
Base Product NumberPXF40 [1]
Current - Output (Max)6A, 400mA, 400mA [1]
Efficiency83% [1]
FeaturesRemote On/Off, OCP, OVP, SCP [1]
MfrTDK-Lambda [1]
Mounting TypeThrough Hole [1]
Number of Outputs3 [1]
Power (Watts)40 W [1]
Part StatusActive [1]
SeriesPXF (40W) [1]
Size / Dimension2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) [1]
TypeIsolated Module [1]
Voltage - Input (Max)18V [1]
Voltage - Output 212V [1]
Voltage - Input (Min)9V [1]
Voltage - Output 3-12V [1]
Voltage - Isolation1.6 kV [1]
Voltage - Output 13.3V [1]
Package / Case9-DIP Module [1]
Specification references[1]TDK-Lambda PXF40-12T3312 vendor product record ↗
