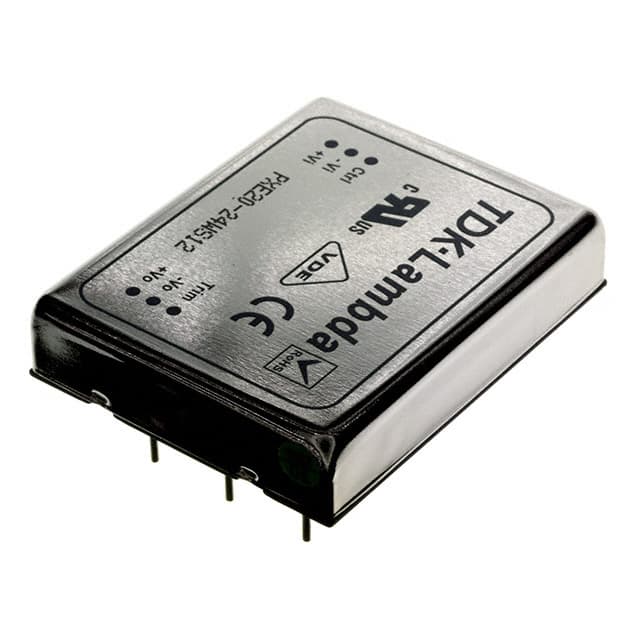

PXE20-24WS12 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN19 sourced attributes1 source document

TDK-Lambda · exact orderable part

PXE20-24WS12

DC DC CONVERTER 12V 20W

Type
Isolated Module
Number of Outputs
1
Voltage - Input (Min)
9V
Voltage - Input (Max)
36V
Voltage - Output 1
12V
Current - Output (Max)
1.67A
Power (Watts)
20 W
Voltage - Isolation
1.6 kV
Series
PXE (20W)
Original manufacturerCommercial terms confirmed per lot
ManufacturerTDK-Lambda
Package / case8-DIP Module, 6 Leads
Mounting typeThrough Hole
PackingBulk

Technical parameters

Technical specifications

19 normalized values · 1 validated source

Report a data issue
ParameterValue
ApplicationsITE (Commercial) [1]
Base Product NumberPXE20 [1]
Current - Output (Max)1.67A [1]
Efficiency81% [1]
FeaturesRemote On/Off [1]
MfrTDK-Lambda [1]
Mounting TypeThrough Hole [1]
Number of Outputs1 [1]
Operating Temperature-40°C ~ 100°C [1]
Power (Watts)20 W [1]
Part StatusActive [1]
SeriesPXE (20W) [1]
Size / Dimension2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) [1]
TypeIsolated Module [1]
Voltage - Input (Max)36V [1]
Voltage - Input (Min)9V [1]
Voltage - Isolation1.6 kV [1]
Voltage - Output 112V [1]
Package / Case8-DIP Module, 6 Leads [1]
Specification references[1]TDK-Lambda PXE20-24WS12 vendor product record ↗
