MPNHarborRFQ 0

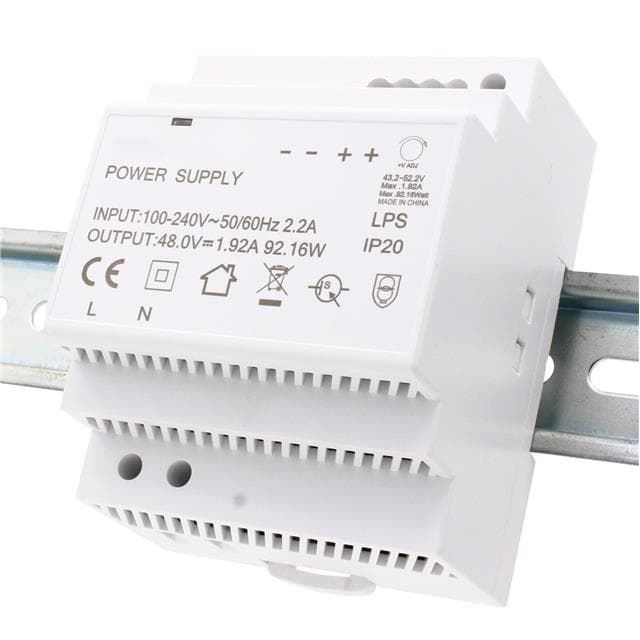

PW-301 vendor-delivered product or package visual
Representative package visualProduct referenceVendor-delivered DigiKey product/package image
Exact MPN17 sourced attributes1 source document

Brainboxes · exact orderable part

PW-301

AC/DC DIN RAIL SUPPLY 48V 96W

AC Voltage - Input
100 ~ 240 VAC
Applications
ITE (Commercial)
Approval Agency
CE, UKCA, UL
Current - Output (Max)
2A
Efficiency
85%
Features
Adjustable Output
Original manufacturerCommercial terms confirmed per lot
ManufacturerBrainboxes
Mounting typeunknown
PackingBox

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue
ParameterValue
AC Voltage - Input100 ~ 240 VAC [1]
ApplicationsITE (Commercial) [1]
Approval AgencyCE, UKCA, UL [1]
Current - Output (Max)2A [1]
Efficiency85% [1]
FeaturesAdjustable Output [1]
Input TypeAC [1]
MfrBrainboxes [1]
Number of Outputs1 [1]
Operating Temperature-10°C ~ 40°C [1]
Power (Watts)96W [1]
Product StatusActive [1]
SeriesPW-301 (96W) [1]
Size / Dimension3.60" L x 3.50" W x 2.40" H (91.4mm x 88.9mm x 61.0mm) [1]
Standard Number62368-1 [1]
Voltage - Isolation3 kV [1]
Voltage - Output 148V [1]
Specification references[1]Brainboxes PW-301 vendor product record ↗
