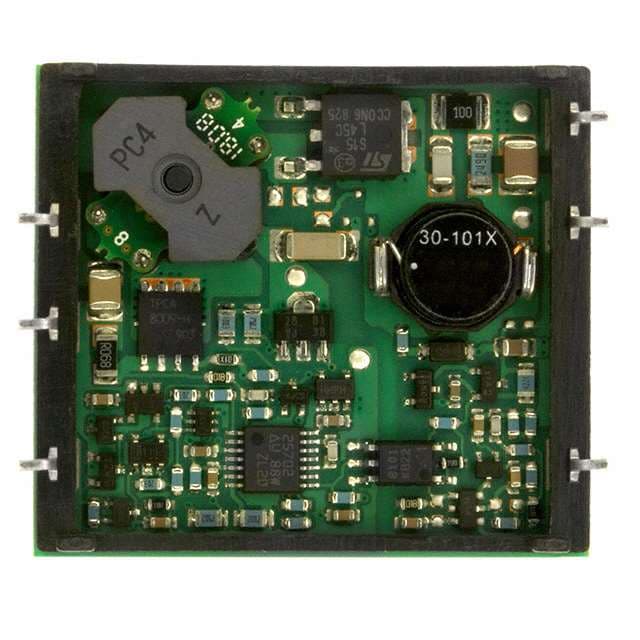

PT4141C representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN17 sourced attributes1 source document

Burr Brown · exact orderable part

PT4141C

DC DC CONVERTER 3.3V 20W

Applications
ITE (Commercial)
Current - Output (Max)
5A
Efficiency
78%
Features
UVLO
Mfr
Burr Brown
Mounting Type
Surface Mount
Original manufacturerCommercial terms confirmed per lot
ManufacturerBurr Brown
Package / case8-SMD Module, 6 Leads
Mounting typeunknown
PackingTray

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue
ParameterValue
ApplicationsITE (Commercial) [1]
Current - Output (Max)5A [1]
Efficiency78% [1]
FeaturesUVLO [1]
MfrBurr Brown [1]
Mounting TypeSurface Mount [1]
Number of Outputs1 [1]
Operating Temperature-40°C~85°C [1]
Power (Watts)20 W [1]
Product StatusObsolete [1]
SeriesPT4140 (20W) [1]
Size / Dimension1.73" L x 1.52" W x 0.33" H (43.9mm x 38.6mm x 8.5mm) [1]
TypeIsolated Module [1]
Voltage - Input (Max)40V [1]
Voltage - Input (Min)18V [1]
Voltage - Isolation1.5 kV [1]
Voltage - Output 13.3V [1]
Specification references[1]Burr Brown PT4141C vendor product record ↗
