MPNHarborRFQ 0

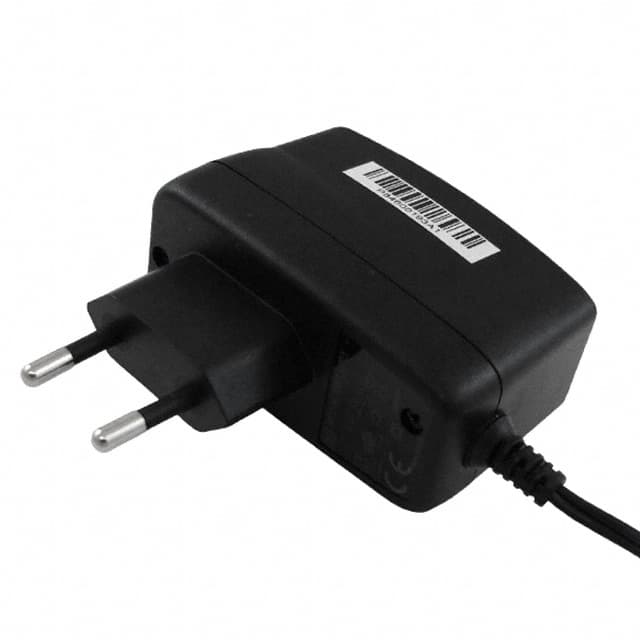

PSA12E-120 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN21 sourced attributes1 source document

Phihong USA · exact orderable part

PSA12E-120

AC/DC WALL MOUNT ADAPTER 12V 12W

Mfr
Phihong USA
Applications
ITE (Commercial)
Product Status
Obsolete
Approval Agency
CE, cULus, TUVgs
Cord Length
47.2" (1.20m)
Current - Output (Max)
1A
Original manufacturerCommercial terms confirmed per lot
ManufacturerPhihong USA
Mounting typeunknown
PackingBox

Technical parameters

Technical specifications

21 normalized values · 1 validated source

Report a data issue
ParameterValue
MfrPhihong USA [1]
ApplicationsITE (Commercial) [1]
Product StatusObsolete [1]
Approval AgencyCE, cULus, TUVgs [1]
Cord Length47.2" (1.20m) [1]
Current - Output (Max)1A [1]
EfficiencyLevel V [1]
FormWall Mount (Class II) [1]
Input ConnectorCEE 7/16 [1]
Input TypeFixed Blade [1]
No Load Power Consumption300mW (Max) [1]
Operating Temperature0°C ~ 40°C [1]
PolarizationPositive Center [1]
Output ConnectorBarrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm [1]
Power (Watts)12 W [1]
Region UtilizedEurope [1]
SeriesPSA12 (12W) [1]
Size / Dimension2.81" L x 1.33" W x 1.81" H (71.5mm x 33.8mm x 46.0mm) [1]
Voltage - Input90 ~ 264 VAC [1]
Voltage - Output12V [1]
Weight0.187 lb (84.82 g) [1]
Specification references[1]Phihong USA PSA12E-120 vendor product record ↗
