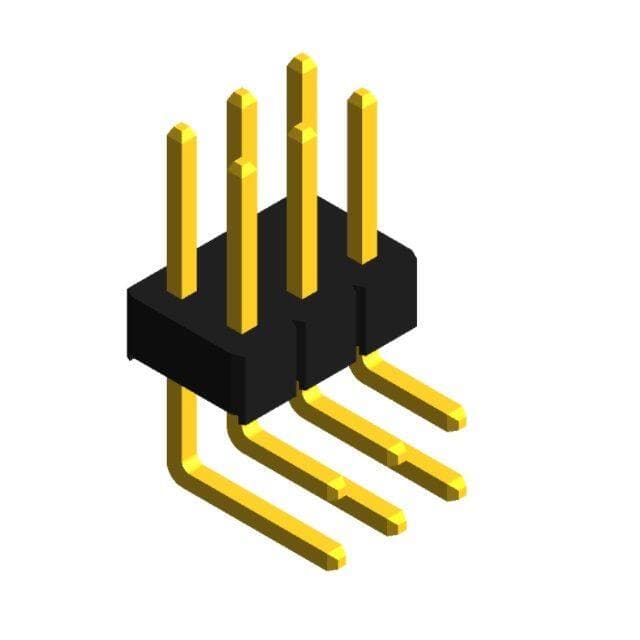

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN30 sourced attributes1 source document

SUPERIOR TECH · exact orderable part

PHED-RS006G1ABOGA-C006

Name: PHED-RS006G1ABOGA-C006
Brand: SUPERIOR TECH

MALE HEADER RIGHT ANGLE THROUGH

Original manufacturerCommercial terms confirmed per lot

ManufacturerSUPERIOR TECH

Mounting typeunknown

PackingBag

Technical parameters

Technical specifications

30 normalized values · 1 validated source

PHED-RS006G1ABOGA-C006 technical parameters
Parameter	Value
Connector Type	Header [1]
Mfr	SUPERIOR TECH [1]
Contact Finish - Mating	Gold [1]
Product Status	Active [1]
Contact Finish - Post	Gold [1]
Series	PHED [1]
Contact Finish Thickness - Mating	Flash [1]
Contact Finish Thickness - Post	Flash [1]
Contact Length - Post	0.236" (6.00mm) [1]
Contact Material	Brass [1]
Contact Length - Mating	0.236" (6.00mm) [1]
Contact Shape	Square [1]
Contact Type	Male Pin [1]
Current Rating (Amps)	3A [1]
Fastening Type	Push-Pull [1]
Insulation Color	Black [1]
Insulation Height	0.098" (2.50mm) [1]
Insulation Material	Plastic, Halogen Free [1]
Material Flammability Rating	UL94 V-0 [1]
Mounting Type	Through Hole, Right Angle [1]
Number of Positions	6 [1]
Number of Positions Loaded	All [1]
Number of Rows	2 [1]
Overall Contact Length	0.118" (3.00mm) [1]
Operating Temperature	-40°C~125°C [1]
Pitch - Mating	0.100" (2.54mm) [1]
Row Spacing - Mating	0.100" (2.54mm) [1]
Shrouding	Unshrouded [1]
Style	Board to Board [1]
Termination	Solder [1]
