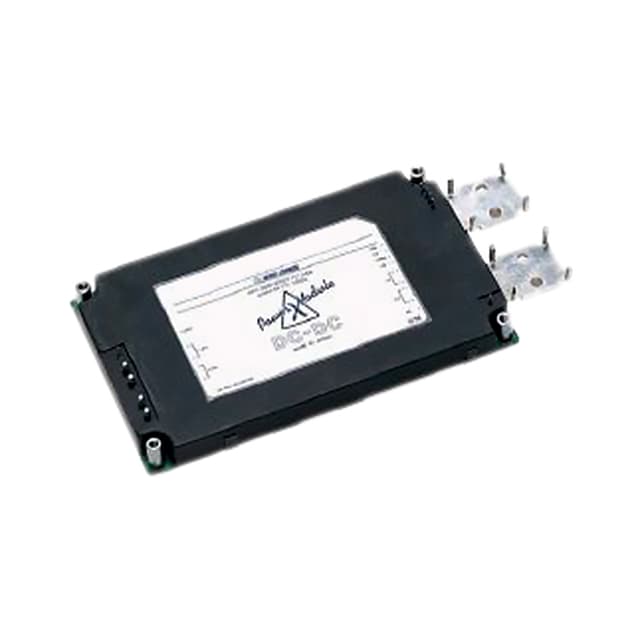

PH100S48-12 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

TDK-Lambda · exact orderable part

PH100S48-12

DC DC CONVERTER 12V 100W

Type: Isolated Module
Number of Outputs: 1
Voltage - Input (Min): 36V
Voltage - Input (Max): 76V
Voltage - Output 1: 12V
Current - Output (Max): 8.4A
Power (Watts): 100 W
Voltage - Isolation: 3 kV
Series: PH-S (100W)

Original manufacturerCommercial terms confirmed per lot

ManufacturerTDK-Lambda

Package / caseModule

Mounting typeThrough Hole

PackingBulk

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue

PH100S48-12 technical parameters
Parameter	Value
Applications	ITE (Commercial) [1]
Control Features	Enable, Active Low [1]
Current - Output (Max)	8.4A [1]
Features	Remote On/Off, OCP, OTP, OVP [1]
Mfr	TDK-Lambda [1]
Mounting Type	Through Hole [1]
Number of Outputs	1 [1]
Operating Temperature	-20°C ~ 85°C [1]
Power (Watts)	100 W [1]
Part Status	Obsolete [1]
Series	PH-S (100W) [1]
Size / Dimension	3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm) [1]
Type	Isolated Module [1]
Voltage - Input (Max)	76V [1]
Voltage - Input (Min)	36V [1]
Voltage - Isolation	3 kV [1]
Voltage - Output 1	12V [1]
Package / Case	Module [1]

Specification references[1]TDK-Lambda PH100S48-12 vendor product record ↗
