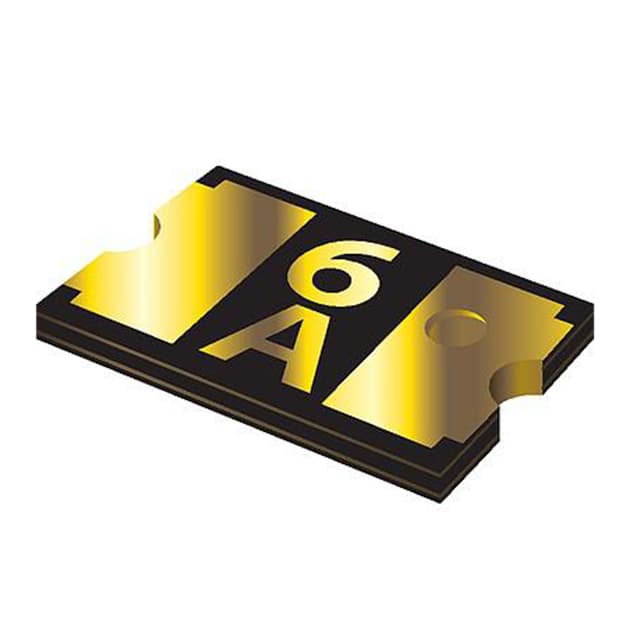

PFUF.010.2 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

SCHURTER Inc. · exact orderable part

PFUF.010.2

PTC RESET FUSE 30V 100MA 1210

Approval Agency: cURus, TUV
Current - Hold (Ih) (Max): 100 mA
Base Product Number: PFUF.010
Current - Max: 10 A
Current - Trip (It): 300 mA
Mfr: SCHURTER Inc.

Original manufacturerCommercial terms confirmed per lot

ManufacturerSCHURTER Inc.

Package / case1210 (3225 Metric), Concave

Mounting typeunknown

PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue

PFUF.010.2 technical parameters
Parameter	Value
Approval Agency	cURus, TUV [1]
Current - Hold (Ih) (Max)	100 mA [1]
Base Product Number	PFUF.010 [1]
Current - Max	10 A [1]
Current - Trip (It)	300 mA [1]
Mfr	SCHURTER Inc. [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-40°C ~ 85°C [1]
Product Status	Active [1]
Resistance - Initial (Ri) (Min)	800 mOhms [1]
Resistance - Post Trip (R1) (Max)	15 Ohms [1]
Series	PFUF [1]
Size / Dimension	0.127" L x 0.093" W (3.22mm x 2.35mm) [1]
Thickness (Max)	0.037" (0.95mm) [1]
Time to Trip	600 ms [1]
Voltage - Max	30V [1]
Type	Polymeric [1]

Specification references[1]SCHURTER Inc. PFUF.010.2 vendor product record ↗
