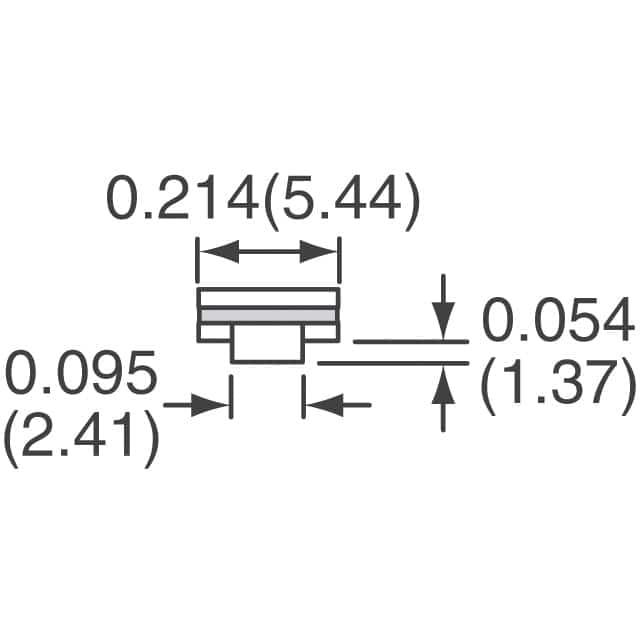

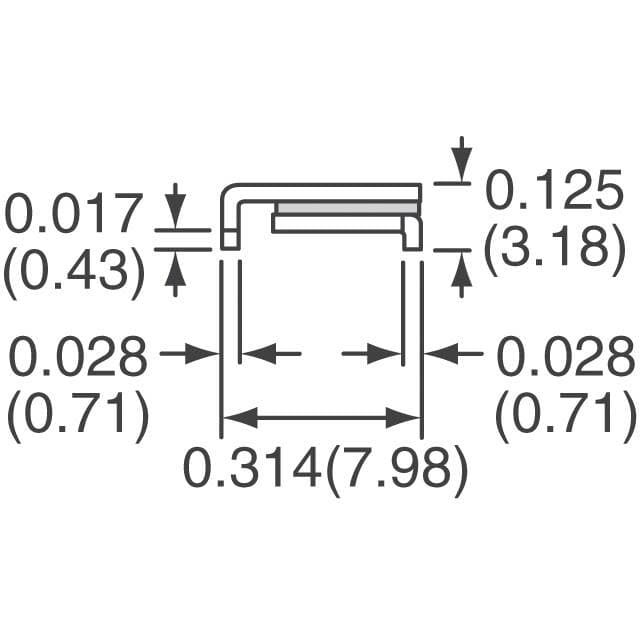

PFSM.030.2 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 3

Exact MPN18 sourced attributes1 source document

SCHURTER Inc. · exact orderable part

PFSM.030.2

PTC RESET FUSE 60V 300MA 2SMD

Approval Agency: cURus, TUV
Current - Hold (Ih) (Max): 300 mA
Base Product Number: PFSM.030
Current - Max: 40 A
Current - Trip (It): 600 mA
Mfr: SCHURTER Inc.

Original manufacturerCommercial terms confirmed per lot

ManufacturerSCHURTER Inc.

Package / case2-SMD

Mounting typeunknown

PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue

PFSM.030.2 technical parameters
Parameter	Value
Approval Agency	cURus, TUV [1]
Current - Hold (Ih) (Max)	300 mA [1]
Base Product Number	PFSM.030 [1]
Current - Max	40 A [1]
Current - Trip (It)	600 mA [1]
Mfr	SCHURTER Inc. [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-40°C~85°C [1]
Product Status	Active [1]
Resistance - Initial (Ri) (Min)	900 mOhms [1]
Resistance - Post Trip (R1) (Max)	4.8 Ohms [1]
Ratings	AEC-Q200 [1]
Series	PFSM [1]
Size / Dimension	0.289" L x 0.214" W (7.36mm x 5.44mm) [1]
Thickness (Max)	0.125" (3.18mm) [1]
Time to Trip	3 s [1]
Voltage - Max	60V [1]
Type	Polymeric [1]

Specification references[1]SCHURTER Inc. PFSM.030.2 vendor product record ↗
