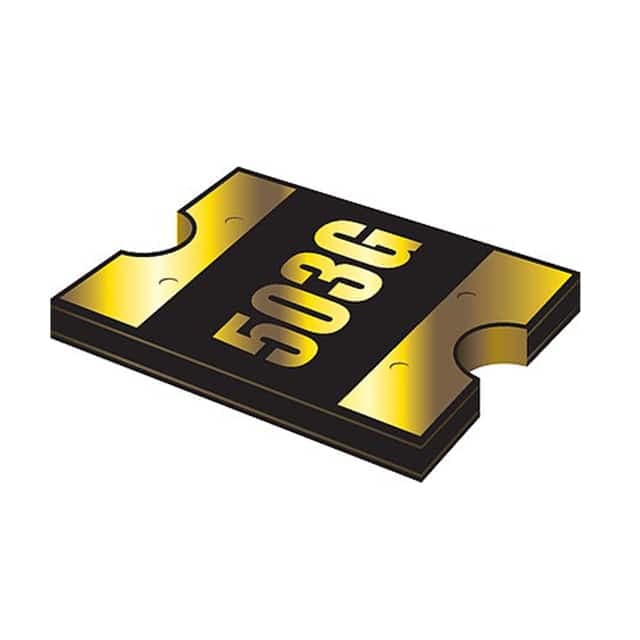

PFDF.050.2 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

SCHURTER Inc. · exact orderable part

PFDF.050.2

PTC RESET FUSE 60V 550MA 2018

Approval Agency: cURus, TUV
Current - Hold (Ih) (Max): 550 mA
Base Product Number: PFDF.050
Current - Max: 10 A
Current - Trip (It): 1.2 A
Mfr: SCHURTER Inc.

Original manufacturerCommercial terms confirmed per lot

ManufacturerSCHURTER Inc.

Package / case2018 (5045 Metric)

Mounting typeunknown

PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue

PFDF.050.2 technical parameters
Parameter	Value
Approval Agency	cURus, TUV [1]
Current - Hold (Ih) (Max)	550 mA [1]
Base Product Number	PFDF.050 [1]
Current - Max	10 A [1]
Current - Trip (It)	1.2 A [1]
Mfr	SCHURTER Inc. [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-40°C~85°C [1]
Product Status	Active [1]
Resistance - Initial (Ri) (Min)	200 mOhms [1]
Resistance - Post Trip (R1) (Max)	1 Ohms [1]
Series	PFDF [1]
Size / Dimension	0.200" L x 0.180" W (5.08mm x 4.58mm) [1]
Thickness (Max)	0.043" (1.09mm) [1]
Time to Trip	3 s [1]
Voltage - Max	60V [1]
Type	Polymeric [1]

Specification references[1]SCHURTER Inc. PFDF.050.2 vendor product record ↗
