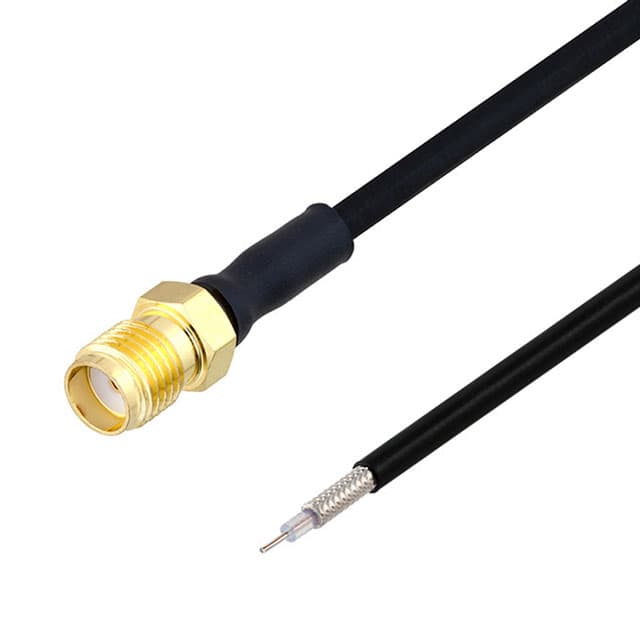

PE3C8145-9 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN13 sourced attributes1 source document

Pasternack · exact orderable part

PE3C8145-9

CBL ASSY SMA-TEST POINT 9"

1st Connector: SMA Jack
1st Connector Mounting Type: Free Hanging (In-Line)
1st Contact Gender: Female
2nd Connector: Cable (Round)
Cable Impedance: 50 Ohms
Color: Black

Original manufacturerCommercial terms confirmed per lot

ManufacturerPasternack

Mounting typeunknown

PackingBag

Technical parameters

Technical specifications

13 normalized values · 1 validated source

Report a data issue

PE3C8145-9 technical parameters
Parameter	Value
1st Connector	SMA Jack [1]
1st Connector Mounting Type	Free Hanging (In-Line) [1]
1st Contact Gender	Female [1]
2nd Connector	Cable (Round) [1]
Cable Impedance	50 Ohms [1]
Color	Black [1]
Mfr	Pasternack [1]
Connector Impedance	50 Ohms [1]
Product Status	Active [1]
Frequency - Max	18 GHz [1]
Length	9.000" (228.60mm) [1]
Overall Impedance	50 Ohms [1]
Style	SMA to Test Point [1]

Specification references[1]Pasternack PE3C8145-9 vendor product record ↗
