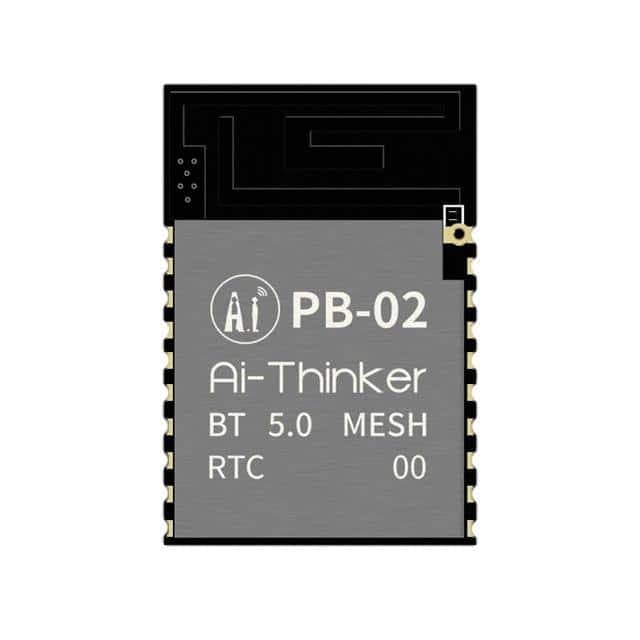

PB-02 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Ai-Thinker · exact orderable part

PB-02

BLUETOOTH MODULE, BLE5.0 MODULE

Antenna Type: Antenna Not Included
Current - Receiving: 7mA
Current - Transmitting: 25mA
Frequency: 2.4GHz
Memory Size: 138kB SRAM
Mfr: Ai-Thinker

Original manufacturerCommercial terms confirmed per lot

ManufacturerAi-Thinker

Package / case20-SMD Module

Mounting typeunknown

PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

PB-02 technical parameters
Parameter	Value
Antenna Type	Antenna Not Included [1]
Current - Receiving	7mA [1]
Current - Transmitting	25mA [1]
Frequency	2.4GHz [1]
Memory Size	138kB SRAM [1]
Mfr	Ai-Thinker [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-40°C~85°C [1]
Power - Output	10dBm [1]
Product Status	Active [1]
Protocol	Bluetooth v5.0 [1]
RF Family/Standard	Bluetooth [1]
Sensitivity	-93dBm [1]
Serial Interfaces	ADC, GPIO, PWM, SPI [1]
Voltage - Supply	2.7V ~ 3.6V [1]
Utilized IC / Part	PHY6212 [1]

Specification references[1]Ai-Thinker PB-02 vendor product record ↗
