MPNHarborRFQ 0

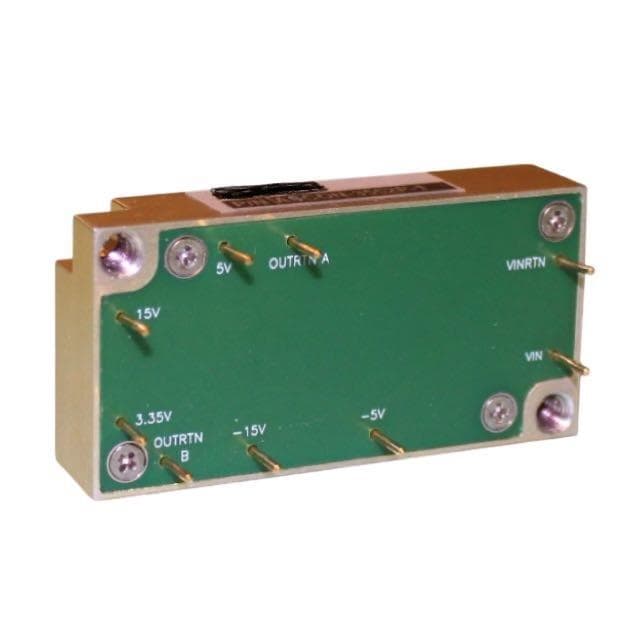

OHD35-5-1 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN17 sourced attributes1 source document

OHM AMERICAS · exact orderable part

OHD35-5-1

DC/DC CNVRTR +/-5V 3.3V 15V 33W

Applications
ITE (Commercial)
Current - Output (Max)
2A, 600mA, 1.5A, 500mA, 500mA
Mfr
OHM AMERICAS
Mounting Type
Chassis Mount
Number of Outputs
5
Operating Temperature
-55°C ~ 85°C
Original manufacturerCommercial terms confirmed per lot
ManufacturerOHM AMERICAS
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue
ParameterValue
ApplicationsITE (Commercial) [1]
Current - Output (Max)2A, 600mA, 1.5A, 500mA, 500mA [1]
MfrOHM AMERICAS [1]
Mounting TypeChassis Mount [1]
Number of Outputs5 [1]
Operating Temperature-55°C ~ 85°C [1]
Power (Watts)33W [1]
Product StatusActive [1]
Size / Dimension2.36" L x 1.18" W x 0.49" H (59.9mm x 30.0mm x 12.4mm) [1]
TypeEnclosed [1]
Voltage - Input (Max)36V [1]
Voltage - Output 2-5V [1]
Voltage - Input (Min)18V [1]
Voltage - Output 33.3V [1]
Voltage - Isolation50 V [1]
Voltage - Output 415V [1]
Voltage - Output 15V [1]
Specification references[1]OHM AMERICAS OHD35-5-1 vendor product record ↗
