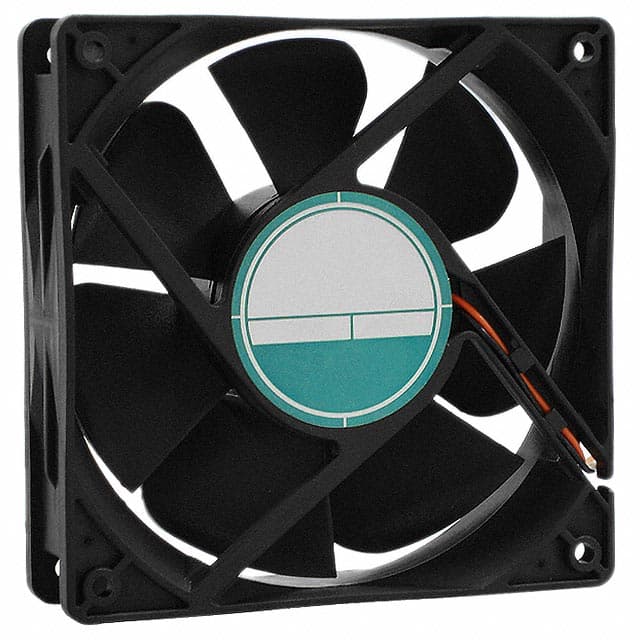

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN21 sourced attributes1 source document

Orion Fans · exact orderable part

OD1232-48MB

Name: OD1232-48MB
Brand: Orion Fans

FAN AXIAL 120X32MM 48VDC WIRE

Original manufacturerCommercial terms confirmed per lot

ManufacturerOrion Fans

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

21 normalized values · 1 validated source

OD1232-48MB technical parameters
Parameter	Value
Air Flow	107.0 CFM (3.00m³/min) [1]
Approval Agency	cURus, TUV [1]
Bearing Type	Ball [1]
Base Product Number	OD1232 [1]
Current Rating (Amps)	0.150A [1]
Fan Type	Tubeaxial [1]
Lifetime @ Temp.	60000 Hrs @ 40°C [1]
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced [1]
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced [1]
Mfr	Orion Fans [1]
Noise	48.0dB [1]
Operating Temperature	-4 ~ 176°F (-20 ~ 80°C) [1]
Product Status	Active [1]
RPM	3300 RPM [1]
Series	OD1232 [1]
Size / Dimension	Square - 120mm L x 120mm H [1]
Static Pressure	0.330 in H2O (82.2 Pa) [1]
Termination	2 Wire Leads [1]
Voltage - Rated	48VDC [1]
Voltage Range	24 ~ 55.2VDC [1]
Width	32.00mm [1]
