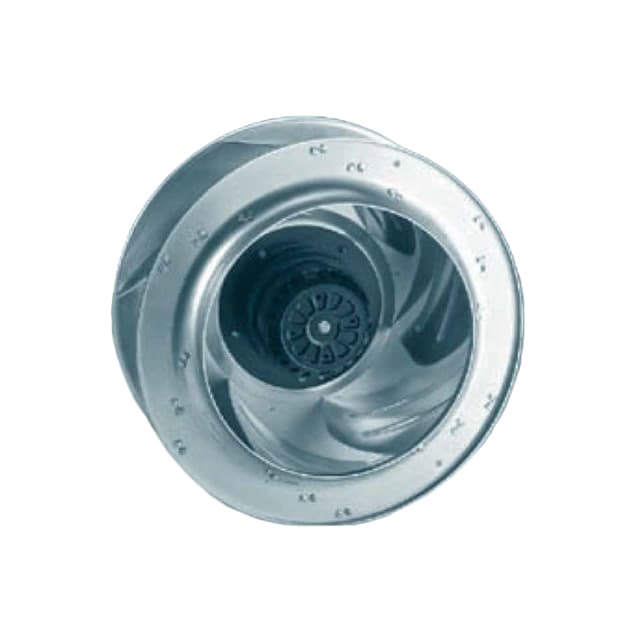

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN24 sourced attributes1 source document

Orion Fans · exact orderable part

OAB318-11-1

Name: OAB318-11-1
Brand: Orion Fans

FAN IMP MTRZD 318X154 115V W/CAP

Original manufacturerCommercial terms confirmed per lot

ManufacturerOrion Fans

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

24 normalized values · 1 validated source

OAB318-11-1 technical parameters
Parameter	Value
Air Flow	1165.0 CFM (32.62m³/min) [1]
Approval Agency	cURus, TUV [1]
Base Product Number	OAB318 [1]
Bearing Type	Ball [1]
Current Rating (Amps)	1.40A [1]
Fan Type	Motorized Impellers [1]
Material - Frame	Aluminum [1]
Features	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) [1]
Lifetime @ Temp.	60000 Hrs @ 40°C [1]
Noise	66.0dB [1]
Manufacturer	Orion Fans [1]
Power (Watts)	155W [1]
Material - Blade	Metal [1]
RPM	1580 RPM [1]
Series	OAB318 [1]
Operating Temperature	-4 ~ 176°F (-20 ~ 80°C) [1]
Size / Dimension	Round - 318mm Dia [1]
Part Status	Active [1]
Static Pressure	1.600 in H2O (398.6 Pa) [1]
Termination	4 Wire Leads [1]
Voltage - Rated	115VAC [1]
Weight	8.8 lbs (4 kg) [1]
Width	154.5mm [1]
Voltage Range	108 ~ 125VAC [1]
