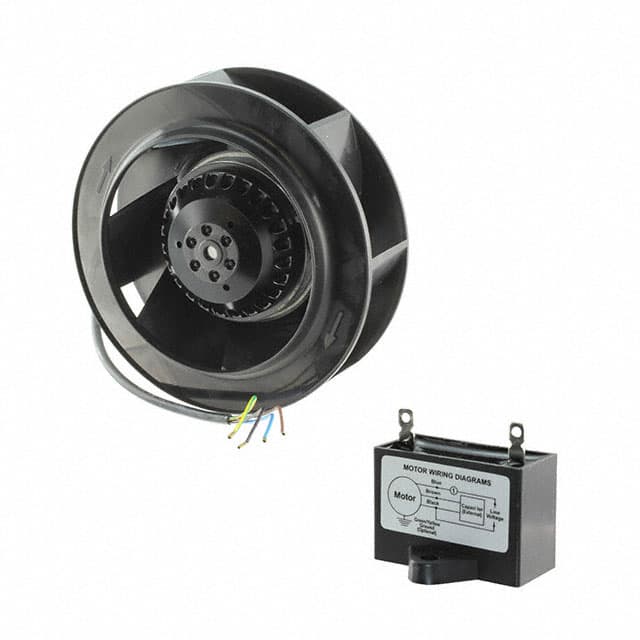

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN24 sourced attributes1 source document

Orion Fans · exact orderable part

OAB190-22-1

Name: OAB190-22-1
Brand: Orion Fans

FAN IMP MTRZD 190X70 230V W/CAP

Original manufacturerCommercial terms confirmed per lot

ManufacturerOrion Fans

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

24 normalized values · 1 validated source

OAB190-22-1 technical parameters
Parameter	Value
Air Flow	370.0 CFM (10.36m³/min) [1]
Approval Agency	cURus, TUV [1]
Base Product Number	OAB190 [1]
Bearing Type	Ball [1]
Current Rating (Amps)	0.300A [1]
Fan Type	Motorized Impellers [1]
Material - Frame	Aluminum [1]
Features	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) [1]
Mfr	Orion Fans [1]
Lifetime @ Temp.	40000 Hrs @ 40°C [1]
Ingress Protection	IP55 - Dust Protected, Water Resistant [1]
Noise	63.0dB [1]
Power (Watts)	72.0W [1]
Material - Blade	Thermoplastic [1]
Product Status	Active [1]
RPM	2700 RPM [1]
Series	OAB190 [1]
Operating Temperature	-40 ~ 140°F (-40 ~ 60°C) [1]
Size / Dimension	Round - 190mm Dia [1]
Static Pressure	1.200 in H2O (298.9 Pa) [1]
Termination	4 Wire Leads [1]
Voltage - Rated	230VAC [1]
Width	70.00mm [1]
Voltage Range	200 ~ 240VAC [1]
