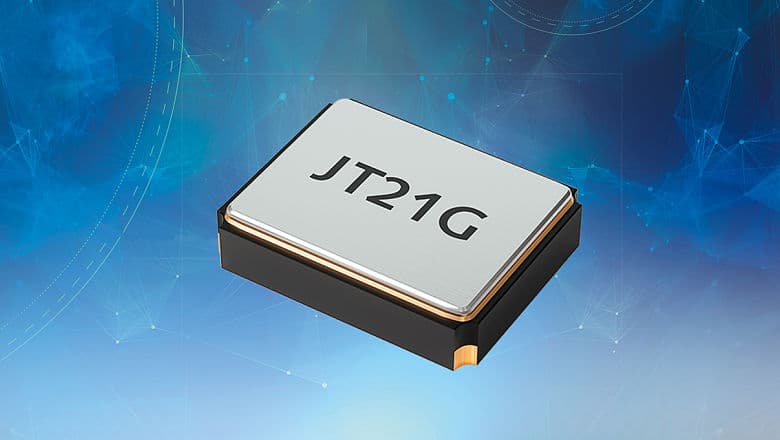

O 26,0-JT21G-E-K-3,3-LF representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN15 sourced attributes1 source document

Jauch Quartz · exact orderable part

O 26,0-JT21G-E-K-3,3-LF

OSC TCXO 26MHZ 3.3V SNWV

Mfr
Jauch Quartz
Base Resonator
Crystal
Part Status
Active
Current - Supply (Max)
2mA
Current - Supply (Disable) (Max)
5.5µA
Frequency
26 MHz
Original manufacturerCommercial terms confirmed per lot
ManufacturerJauch Quartz
Package / case4-SMD, No Lead
Mounting typeunknown
PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

15 normalized values · 1 validated source

Report a data issue
ParameterValue
MfrJauch Quartz [1]
Base ResonatorCrystal [1]
Part StatusActive [1]
Current - Supply (Max)2mA [1]
Current - Supply (Disable) (Max)5.5µA [1]
Frequency26 MHz [1]
Frequency Stability±500ppb [1]
Height - Seated (Max)0.031" (0.80mm) [1]
Mounting TypeSurface Mount [1]
Operating Temperature-40°C ~ 85°C [1]
OutputClipped Sine Wave [1]
SeriesJT21G [1]
Size / Dimension0.079" L x 0.063" W (2.00mm x 1.60mm) [1]
TypeTCXO [1]
Voltage - Supply3.3V [1]
Specification references[1]Jauch Quartz O 26,0-JT21G-E-K-3,3-LF vendor product record ↗
