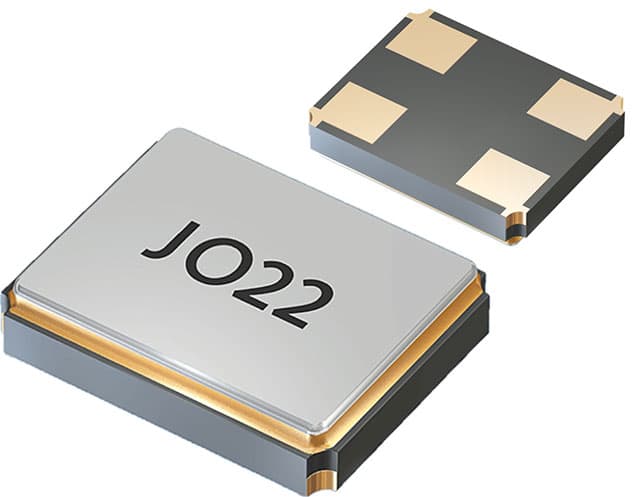

O 16,0-JO22-B-1V3-1-T1-LF representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN17 sourced attributes1 source document

Jauch Quartz · exact orderable part

O 16,0-JO22-B-1V3-1-T1-LF

XTAL OSC XO 16MHZ HCMOS SMD

Type
XO (Standard)
Frequency
16 MHz
Frequency Stability
±50ppm
Output
HCMOS, LVCMOS
Voltage - Supply
1.8V ~ 3.3V
Current - Supply (Max)
3mA
Operating Temperature
-40°C ~ 85°C
Mfr
Jauch Quartz
Original manufacturerCommercial terms confirmed per lot
ManufacturerJauch Quartz
Package / case4-SMD, No Lead
Mounting typeSurface Mount
PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue
ParameterValue
MfrJauch Quartz [1]
Base ResonatorCrystal [1]
Current - Supply (Max)3mA [1]
Current - Supply (Disable) (Max)10µA [1]
Frequency16 MHz [1]
Frequency Stability±50ppm [1]
FunctionEnable/Disable [1]
Height - Seated (Max)0.035" (0.90mm) [1]
Mounting TypeSurface Mount [1]
Operating Temperature-40°C ~ 85°C [1]
OutputHCMOS, LVCMOS [1]
SeriesJO22 [1]
Product StatusActive [1]
Size / Dimension0.098" L x 0.079" W (2.50mm x 2.00mm) [1]
TypeXO (Standard) [1]
Voltage - Supply1.8V ~ 3.3V [1]
Package / Case4-SMD, No Lead [1]
Specification references[1]Jauch Quartz O 16,0-JO22-B-1V3-1-T1-LF vendor product record ↗
