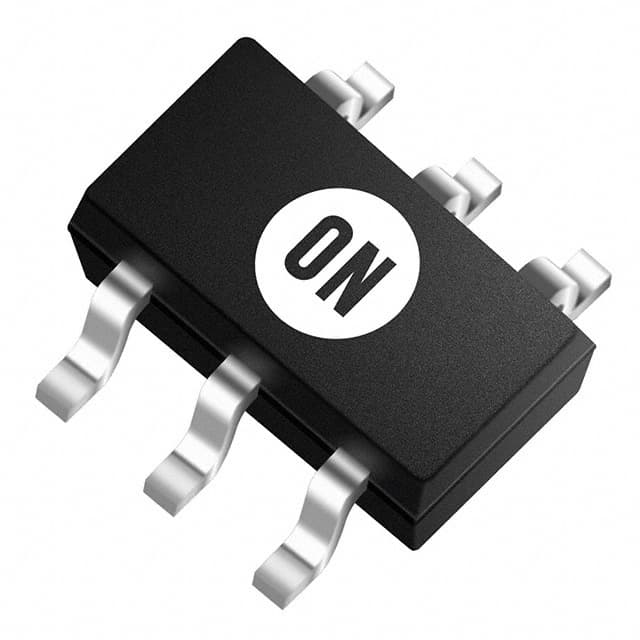

Representative package visualProduct referenceVendor-delivered DigiKey product/package image1 of 2

Exact MPN12 sourced attributes1 source document

onsemi · exact orderable part

NUP2301MW6T1G

Name: NUP2301MW6T1G
Brand: onsemi

TVS DIODE 70VWM SC88/SC70-6

Original manufacturerCommercial terms confirmed per lot

Manufactureronsemi

Package / case6-TSSOP, SC-88, SOT-363

Mounting typeunknown

PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

12 normalized values · 1 validated source

NUP2301MW6T1G technical parameters
Parameter	Value
Applications	General Purpose [1]
Bidirectional Channels	2 [1]
Base Product Number	NUP2301 [1]
Mfr	onsemi [1]
Mounting Type	Surface Mount [1]
Capacitance @ Frequency	1.6pF @ 1MHz [1]
Operating Temperature	-55°C ~ 150°C (TJ) [1]
Power Line Protection	No [1]
Product Status	Active [1]
Type	Steering (Rail to Rail) [1]
Voltage - Reverse Standoff (Typ)	70V [1]
Voltage - Breakdown (Min)	70V [1]

Catalog relationships

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.
