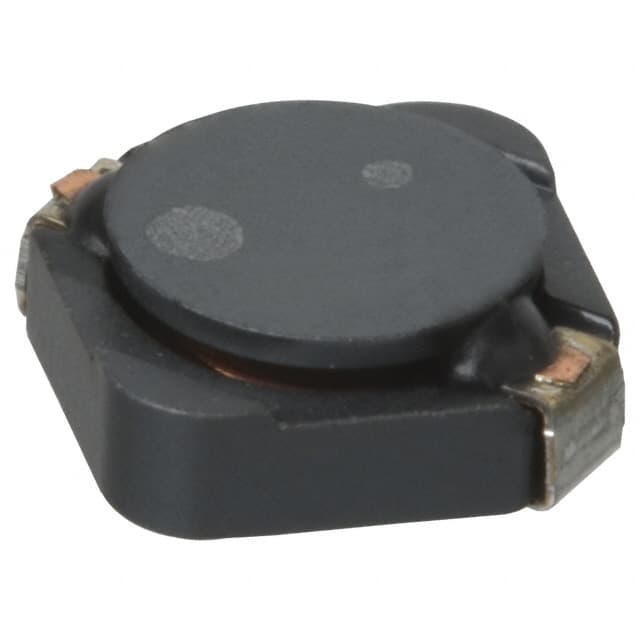

NP04SB470M representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Taiyo Yuden · exact orderable part

NP04SB470M

FIXED IND 47UH 800MA 320MOHM SMD

Current - Saturation (Isat): 380mA
Current Rating (Amps): 800 mA
DC Resistance (DCR): 320mOhm Max
Frequency - Self Resonant: 8MHz
Height - Seated (Max): 0.079" (2.00mm)
Inductance: 47 µH

Original manufacturerCommercial terms confirmed per lot

ManufacturerTaiyo Yuden

Package / caseNonstandard

Mounting typeunknown

PackingTape & Reel (TR)

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

NP04SB470M technical parameters
Parameter	Value
Current - Saturation (Isat)	380mA [1]
Current Rating (Amps)	800 mA [1]
DC Resistance (DCR)	320mOhm Max [1]
Frequency - Self Resonant	8MHz [1]
Height - Seated (Max)	0.079" (2.00mm) [1]
Inductance	47 µH [1]
Inductance Frequency - Test	1 kHz [1]
Material - Core	Ferrite [1]
Mfr	Taiyo Yuden [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-25°C ~ 105°C [1]
Product Status	Obsolete [1]
Series	N, P Type [1]
Shielding	Shielded [1]
Size / Dimension	0.197" L x 0.197" W (5.00mm x 5.00mm) [1]
Tolerance	±20% [1]

Specification references[1]Taiyo Yuden NP04SB470M vendor product record ↗
