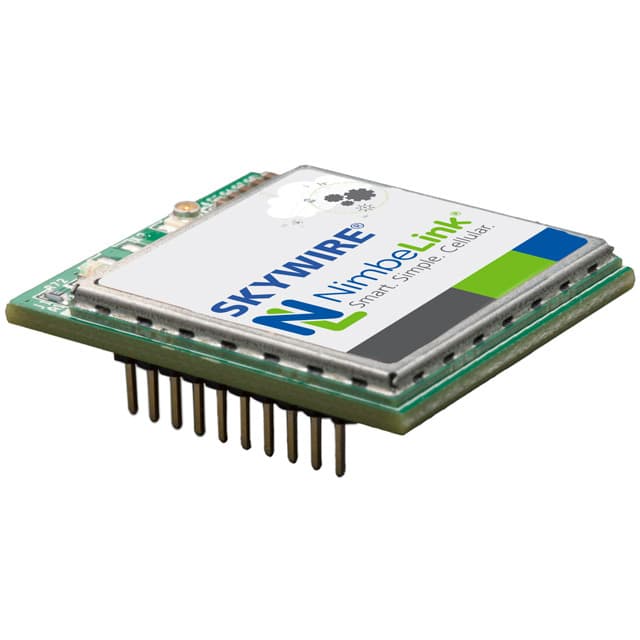

NL-SW-HSPAPE representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN15 sourced attributes1 source document

NimbeLink, LLC · exact orderable part

NL-SW-HSPAPE

RF TXRX MODULE CELLULAR U.FL TH

Antenna Type: Antenna Not Included, U.FL
Current - Receiving: 580mA
Base Product Number: NL-SW-HSPAP
Current - Transmitting: 580mA
DigiKey Programmable: Not Verified
Frequency: 800MHz, 850MHz, 1.7GHz, 1.9GHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerNimbeLink, LLC

Package / case20-DIP Module

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

15 normalized values · 1 validated source

Report a data issue

NL-SW-HSPAPE technical parameters
Parameter	Value
Antenna Type	Antenna Not Included, U.FL [1]
Current - Receiving	580mA [1]
Base Product Number	NL-SW-HSPAP [1]
Current - Transmitting	580mA [1]
DigiKey Programmable	Not Verified [1]
Frequency	800MHz, 850MHz, 1.7GHz, 1.9GHz [1]
Mfr	NimbeLink, LLC [1]
Mounting Type	Through Hole [1]
Operating Temperature	-40°C ~ 85°C [1]
Product Status	Obsolete [1]
Protocol	2G/3G HSPA+ [1]
RF Family/Standard	Cellular [1]
Serial Interfaces	UART, USB [1]
Voltage - Supply	3.5V ~ 4.3V [1]
Series	Skywire™ [1]

Specification references[1]NimbeLink, LLC NL-SW-HSPAPE vendor product record ↗
