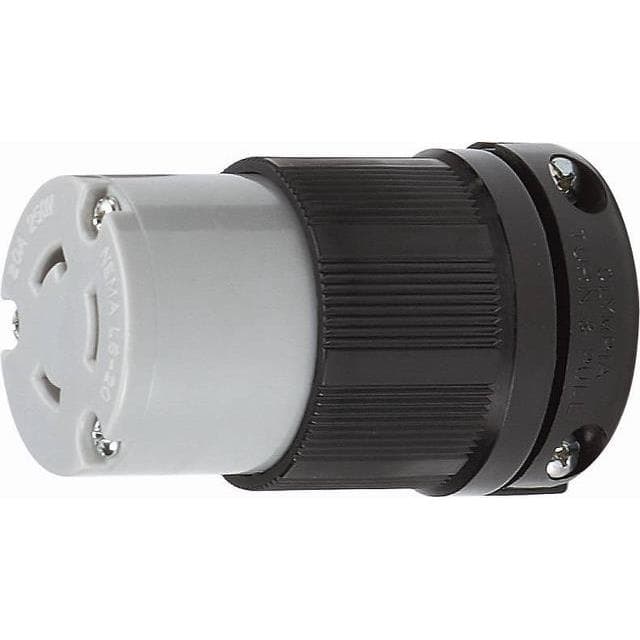

NEMA L6-20 CONNECTOR representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN10 sourced attributes1 source document

Powertronics · exact orderable part

NEMA L6-20 CONNECTOR

NEMA L6-20 LOCKING CONNECTOR

Approval Agency
CSA, UL
Connector Style
NEMA L6-20C
Connector Type
Receptacle, Female Sockets
Current Rating (Amps)
20A
Mfr
Powertronics
Mounting Type
Free Hanging (In-Line)
Original manufacturerCommercial terms confirmed per lot
ManufacturerPowertronics
Mounting typeunknown
PackingBox

Technical parameters

Technical specifications

10 normalized values · 1 validated source

Report a data issue
ParameterValue
Approval AgencyCSA, UL [1]
Connector StyleNEMA L6-20C [1]
Connector TypeReceptacle, Female Sockets [1]
Current Rating (Amps)20A [1]
MfrPowertronics [1]
Mounting TypeFree Hanging (In-Line) [1]
Number of Positions3 [1]
Product StatusActive [1]
TerminationScrew [1]
Voltage Rating250VAC [1]
Specification references[1]Powertronics NEMA L6-20 CONNECTOR vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerPowertronicsView brand page →CategoryPlugs and ReceptaclesView category page →

Related exact parts

Other published variants

0-11010-1101-N0-20010-2101-N0-212088211100882121008823110088241100
