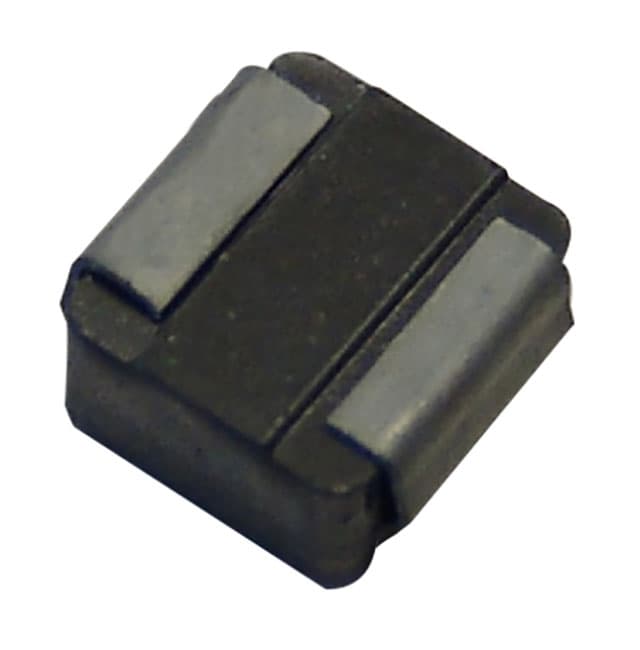

MND-06CZER33M-XB-RU representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Mag Layers · exact orderable part

MND-06CZER33M-XB-RU

FIXED IND 0.33UH 25A 2.53 MOHM S

Inductance: 330 nH
Tolerance: ±20%
Current Rating (Amps): 25 A
DC Resistance (DCR): 2.53mOhm Max
Shielding: Shielded
Size / Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max): 0.079" (2.00mm)
Operating Temperature: -55°C ~ 125°C
Mounting Type: Surface Mount

Original manufacturerCommercial terms confirmed per lot

ManufacturerMag Layers

Package / caseNonstandard

Mounting typeSurface Mount

PackingTape & Reel (TR)

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

MND-06CZER33M-XB-RU technical parameters
Parameter	Value
Current Rating (Amps)	25 A [1]
DC Resistance (DCR)	2.53mOhm Max [1]
Height - Seated (Max)	0.079" (2.00mm) [1]
Inductance	330 nH [1]
Inductance Frequency - Test	100 kHz [1]
Material - Core	Metal [1]
Mfr	Mag Layers [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-55°C ~ 125°C [1]
Product Status	Active [1]
Series	XB [1]
Shielding	Shielded [1]
Size / Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm) [1]
Tolerance	±20% [1]
Type	Molded [1]
Package / Case	Nonstandard [1]

Specification references[1]Mag Layers MND-06CZER33M-XB-RU vendor product record ↗
